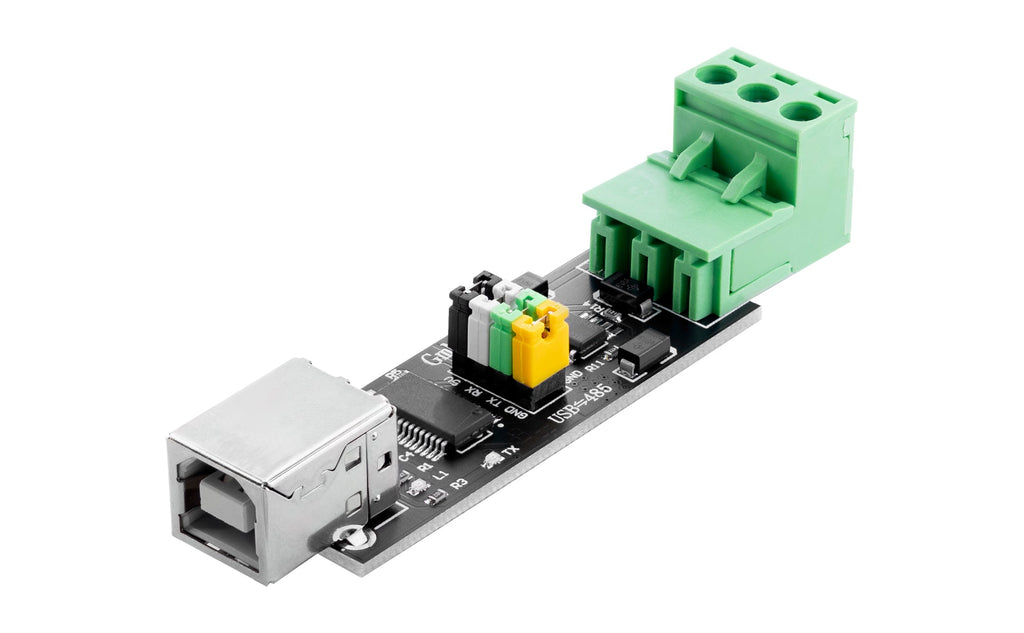

FT232 USB 2.0 to TTL RS485 Serial to USB Adapter | Serial Converter Adapter Module Interface Board

This USB adapter can be used in many ways. Because of its core functionality of connecting a PC to up to 32 RS485 devices, anything between prototyping or testing to building a complete network of compatible devices is possible. Our adapter works with Windows, Linux and even Mac OS.

Features:

This converter provides bi-directional serial communication signal conversion between the RS485 to and from a personal computer USB port using a virtual serial COM port.

Technical details

Type USB adapter

Packing No

Directional control Use of automatic data flow control, automatic discrimination and control of data transmission direction.

Baud rate 300-9216000bps, automatic detection of serial signal data rate

Interface protection TVS tube protection, USB self-recovery protection Supports Windows98/ME/2000/XP/WIN7/8/10/Vista, Linux, Mac

Chipset FT232

Load capacity: The serial converter supports multipoint, each converter allows the connection of 32 RS485 interface devices Interface protection: TVS

Reliable communication: To ensure reliable communication, it is recommended that the number of devices on the bus be limited to approximately 10 to 15. When determining the maximum number of devices that can be connected to a single RS485 bus, the bus length, baud rate, and data transmission requirements must also be considered.
