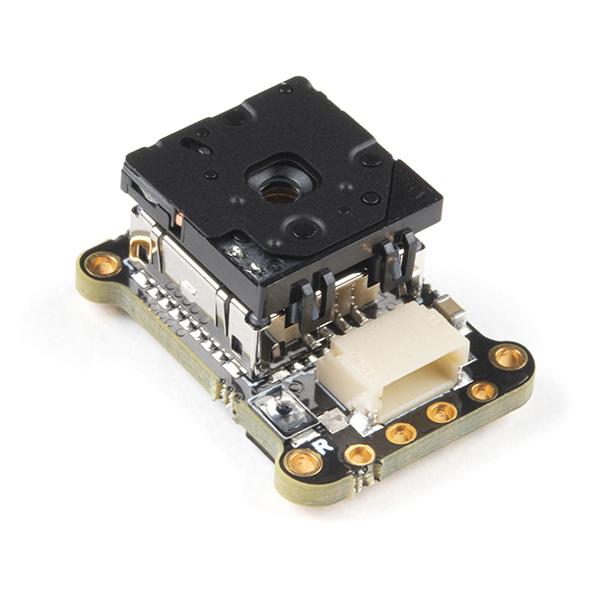

Sparkfun PureThermal Mini Pro JST-SR (with FLIR Lepton 3.5)

The PureThermal Mini Pro JST-SR with Thermal by FLIR is an innovative thermal camera that can be customized to your needs. This product comes ready to use as a plug-and-play UVC 1.0 USB thermal webcam, compatible with standard webcam and video apps on all major platforms. The reference firmware and viewer software are open source, providing a flexible platform for developers.With multiple connection options, including soldering straight to the board or using a custom cable via the JST-SR port, the PTMini Pro is highly versatile. The product features four mounting holes and less complex circuitry, simplifying the embedding process into a production system. The inclusion of USB DFU further enhances the product's usability.The PTMini Pro comes with a FLIR Lepton 3.5, a radiometric-capable LWIR camera solution that is smaller than a 10-cent coin. This powerful camera captures accurate, calibrated, and noncontact temperature data in every pixel of each image, making it an invaluable tool for a wide range of applications.Included in the package:

* PureThermal Mini Pro - JST-SR * FLIR Lepton 3.5 Product features:PureThermal:

* Compatible with all FLIR Leptons, including radiometric 2.5 and 3.5 cores * 9 Hz color video over USB using the USB UVC class * STM32F412 ARM microprocessor for on-board image processing * Open source reference firmware * DFU over USB using a JST-SR port to USB cable * Four mounting holes for easy installation * Compact form-factor ready for embedding into production systems FLIR Lepton 3.5:

* Thermal sensitivity: < 50 mK (0.050˚C) * Spectral Range: 8 - 14 microns (nominal) Long Wave Infrared (LWIR) * Resolution: 160h x 120v pixels * Radiometric Accuracy - High Gain Mode: Greater of +/- 5°C or 5% (typical); Low Gain Mode: Greater of +/- 10°C or 10% (typical) * Scene Dynamic Range - High Gain Mode: -10° to +140°C; Low Gain Mode: -10° to +400°C (at room temperature), -10° to +450°C (typical) * Pixel Size: 12 micrometers * Frame Rate: 8.7 Hz (effective) * Output Format: User-selectable 14-bit, 8-bit (AGC applied), or 24-bit RGB (AGC and colorization applied) * Horizontal Field of View (HFOV): 57° * Lens Type: f/1.1 * Size (w x l x h): 10.50 x 12.70 x 7.14 mm * Weight: 0.9 grams * Power Consumption: 150 mW typical, 650 mW during shutter event, 5mW standby * Optimum Operating Temperature Range: -10˚ to + 80˚C Supporting documents:

* PureThermal Firmware GitHub * PureThermal Schematic * PureThermal Datasheet * Custom open source thermal video display software * IDE and Debug Setup * Lepton Datasheet
