Adafruit ADXL377 - High-G Triple-Axis Accelerometer (+-200g Analog Out)

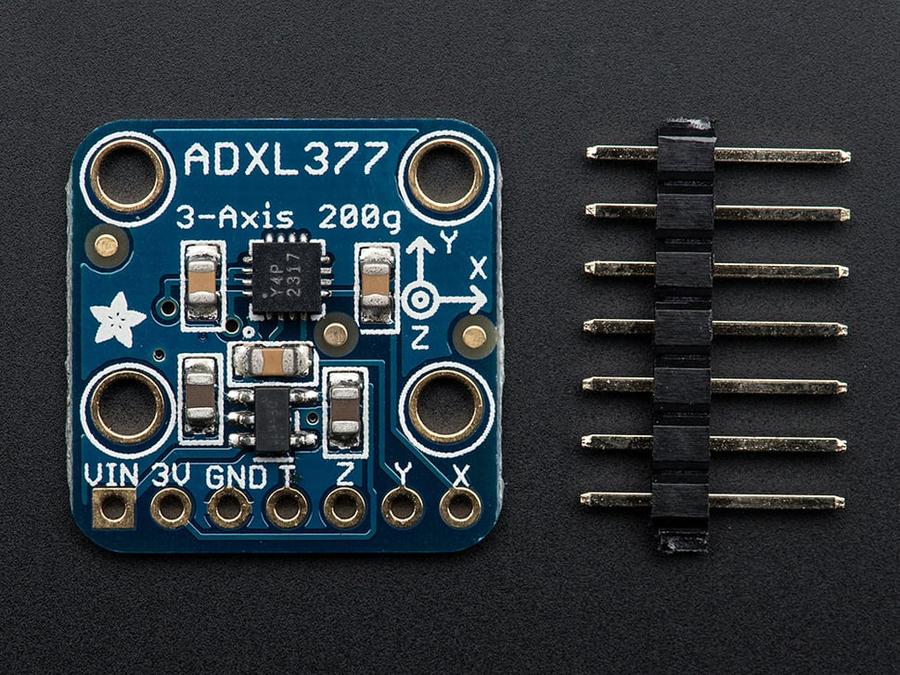

The ADXL377 high G 3-axis accelerometer provides superior accuracy for measuring dynamic forces up to 200g, making it ideal for extreme applications. This sensor, mounted on a compact 0.75-inch square board, features three analog outputs corresponding to X, Y, and Z axes.Ratiometric outputs mean precision measurements: a 0g reading is 1.65V, with full scaling from -200g at 0V to 200g at 3.3V. Integrated 0.01uF capacitors ensure a 500Hz output bandwidth, allowing for responsive data capture in high-speed scenarios.The board comes fully assembled and is simple to integrate with microcontrollers and development boards like Arduino using the standard 0.1-inch header pins. It features a 3.3V regulator for compatibility with 5V logic systems and is stable, thanks to its four 2.5mm mounting holes.
