Super Sequencer® with Voltage Readback 12-bit ADC

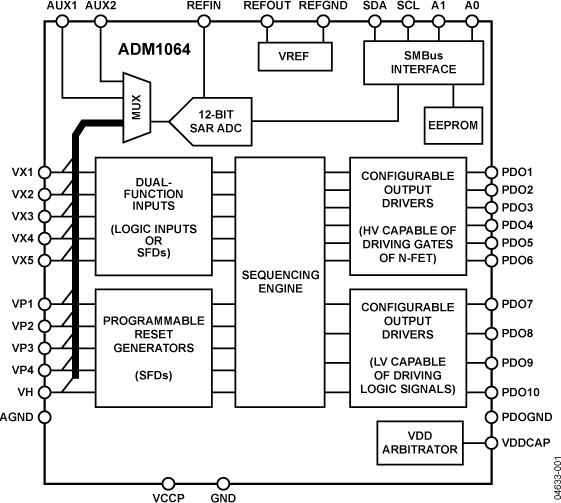

The ADM1064 Super Sequencer® is a configurable supervisory/ sequencing device that offers a single-chip solution for supply monitoring and sequencing in multiple supply systems. In addition to these functions, the ADM1064 integrates a 12-bit ADC that can be used to accurately read back up to 12 separate voltages.

The device also provides up to 10 programmable inputs for moni-toring undervoltage faults, overvoltage faults, or out-of-window faults on up to 10 supplies. In addition, 10 programmable outputs can be used as logic enables. Six of these programmable outputs can provide up to a 12 V output for driving the gate of an N-FET that can be placed in the path of a supply.

Applications

* Central office systems

* Servers/routers

* Multivoltage system line cards

* DSP/FPGA supply sequencing

* In-circuit testing of margined supplies

* Complete supervisory and sequencing solution for up to 10 supplies * 10 supply fault detectors enabling supervision of supplies to <0.5% accuracy at all voltages at 25°C <1.0 % accuracy across all voltages and temperatures * 5 selectable input attenuators allow supervision: Supplies up to 14.4 V on VH Supplies up to 6 V on VP1-4 * 5 dual function inputs VX1-5: High impedance input to supply fault detector with thresholds between 0.573 V and 1.375 V General-purpose logic input
