Isolated RTD Signal Conditioner

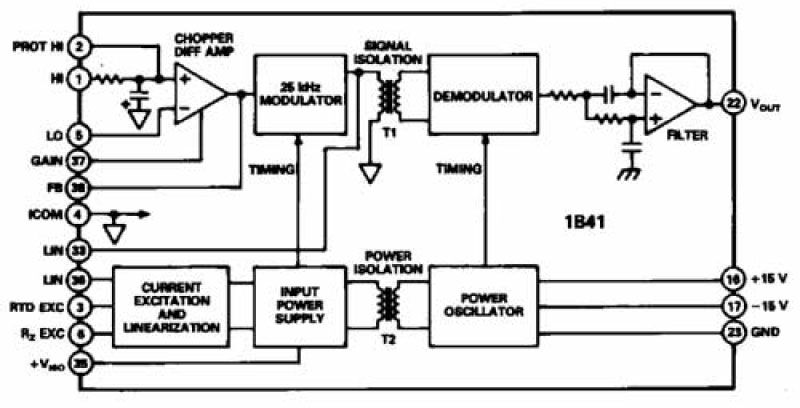

The 1B41 is a precision, isolated, RTD signal conditioner that incorporates a circuit design utilizing transformer based isolation and automated surface mount manufacturing technology. It provides an unbeatable combination of versatility and performance in a compact plastic package. Designed for measurement and control applications, it is especially suited for harsh environments with extremely high common mode interference. Unlike expensive solutions that require separate dc/dc converters, each 1B41 generates its own floating current excitation, providing true low cost channel-to channel isolation.

Applications

* Multichannel RTD Temperature Measurement

* Industrial Measurement and Control Systems

* Data Acquisition System

* Complete RTD Signal Conditioning Solution

* Resistor Programmable Linearization

* Lead Resistance Compensation

* High CMV Isolation: 1500 V rms Continuous

* Small package: 1.0"x2.1"x0.35" DIP

* Low pass filter (fc=3Hz)
