LCMOS ± 15 V High Speed, Quad SPST Switch

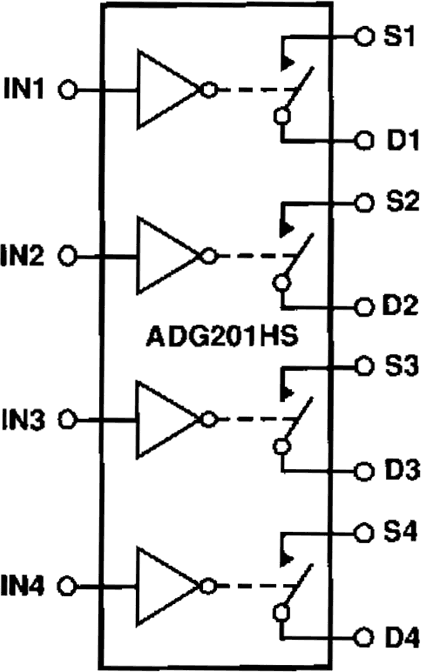

The ADG201HS is a monolithic CMOS device comprising four independently selectable SPST switches. It is designed on an enhanced LC2 MOS process which gives very fast switching speeds and low RON.

The switches also feature break-before-make switching action for use in multiplexer applications and low charge injection for minimum transients on the output when switching the digital inputs.

PRODUCT HIGHLIGHTS

* 50ns max tON and tOFF:

The ADG201HS top grades (K, B, T) have guaranteed 50ns max turn-on and turn-off times over the full operating temperature range. The lower grades (J,A,S) have guaranteed 75ns switching times over the full operating temperature range.

* Single Supply Specifications:

The ADG201HS is fully specified for applications which require a single positive power supply in the + 10.8V to +16.5V range.

* Low Leakage:

Leakage currents in the range of 100pA make these switches suitable for high precision circuits. The added feature of break-before-make allows for multiple outputs to be tied together for multiplexer applications while keeping leakage errors to a minimum.

* 50 ns max Switching Time Over Full Temperature Range

* Single Supply Specs for +10.9 V to 16.5 V Operation

* Extended Plastic Temperature Range (-40°C to +85°C)

* Break-Before-Make Switching Action
