3.3V, 8Mb, Nonvolatile SRAM with Clock

Analog Devices

3.3V, 8Mb, Nonvolatile SRAM with Clock RSS Sample
  • Darmowa próbka
MPN:
DS3065WP
Producent:
ANALOG DEVICES
Dodany do bazy:
Ostatnio widziany:

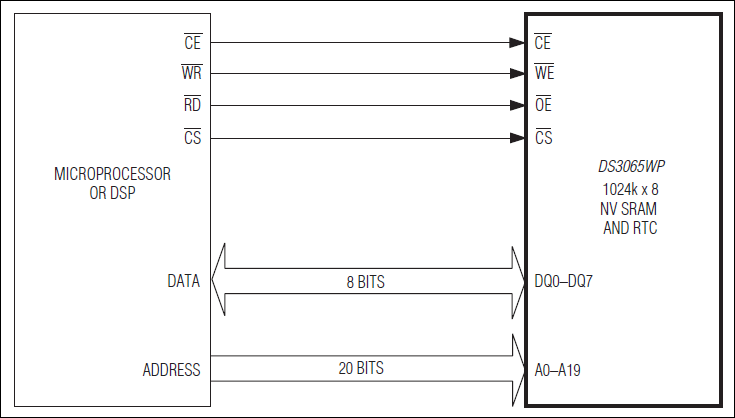

The DS3065WP consists of a static RAM, a nonvolatile (NV) controller, and a real-time clock (RTC). These components are packaged on a surface-mount substrate and require post-assembly attachment of a DS9034IPCX+ battery cap. Whenever VCC is applied to the module, it powers the clock and SRAM from the external power source, and allows the contents of the clock registers or SRAM to be modified. When VCC is powered down or out of tolerance, the controller write protects the memory contents and powers the clock and SRAM from the battery.

Applications

* Data-Acquisition Systems * Industrial Controllers/PLCs * POS Terminals/Fire Alarms * RAID Systems and Servers/Gaming * Routers/Switches

* Reflowable, 34-Pin PowerCap Package

* Integrated RTC

* Unconditionally Write Protects the Clock and SRAM When VCC is Out of Tolerance

* Automatically Switches to Battery Supply When VCC Power Failures Occur

* Industrial Temperature Range (-40°C to +85°C)
