420ksps, +5V, 6-/2-Channel, 12-Bit ADCs with +2.5V Reference and Parallel Interface

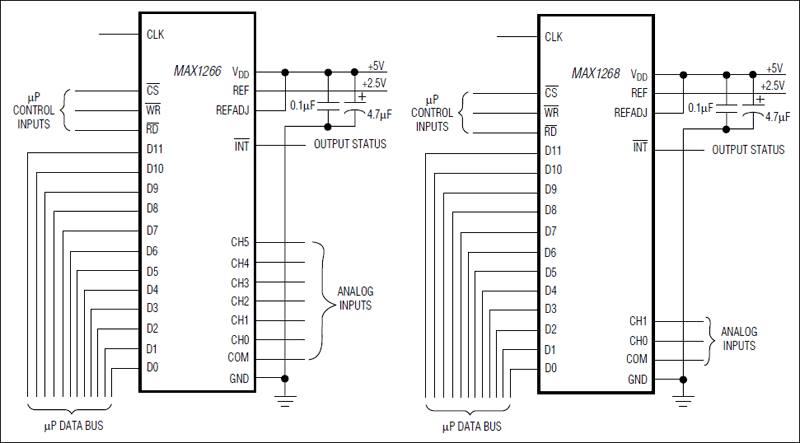

The MAX1266/MAX1268 low-power, 12-bit analog-to-digital converters (ADCs) feature a successive-approximation ADC, automatic power-down, fast wake-up (2µs), an on-chip clock, +2.5V internal reference, and a high-speed 12-bit parallel interface. They operate with a single +5V analog supply.

Power consumption is only 10mW at the maximum sampling rate of 420ksps. Two software-selectable power-down modes enable the MAX1266/MAX1268 to be shut down between conversions; accessing the parallel interface returns them to normal operation. Powering down between conversions can reduce supply below 10µA at lower sampling rates.

Both devices offer software-configurable analog inputs for unipolar/bipolar and single-ended/pseudo-differential operation. In single-ended mode, the MAX1266 has six input channels and the MAX1268 has two (three input channels and one input channel, respectively, when in pseudo-differential mode).

Excellent dynamic performance and low power, combined with ease of use and small package size, make these converters ideal for battery-powered and data-acquisition applications or for other circuits with demanding power-consumption and space requirements. The MAX1266 is offered in a 28-pin QSOP package, while the MAX1268 is available in a 24-pin QSOP. For pin-compatible +3V, 12-bit versions, see the MAX1265/MAX1267.

Applications

* Data Acquisition Systems * Data Logging * Energy Management * Industrial Controls Systems * Patient Monitoring * Touch Screens

* 12-Bit Resolution, ±0.5 LSB Linearity

* Single +5V Operation

* Internal +2.5V Reference

* Software-Configurable Analog Input Multiplexer

* 6-Channel Single Ended/3-Channel Pseudo-Differential (MAX1266)

* 2-Channel Single Ended/1-Channel Pseudo-Differential (MAX1268)

* Software-Configurable Unipolar/Bipolar Analog Inputs

* Low Current

* 2.8mA (420ksps)

* 1.0mA (100ksps)

* 400µA (10ksps)

* 2µA (Shutdown)

* Internal 6MHz Full-Power Bandwidth Track/Hold

* Parallel 12-Bit Interface

* Small Footprint

* 28-Pin QSOP (MAX1266)

* 24-Pin QSOP (MAX1268)
