High-Bandwidth, T1/E1, SPST Analog Switches

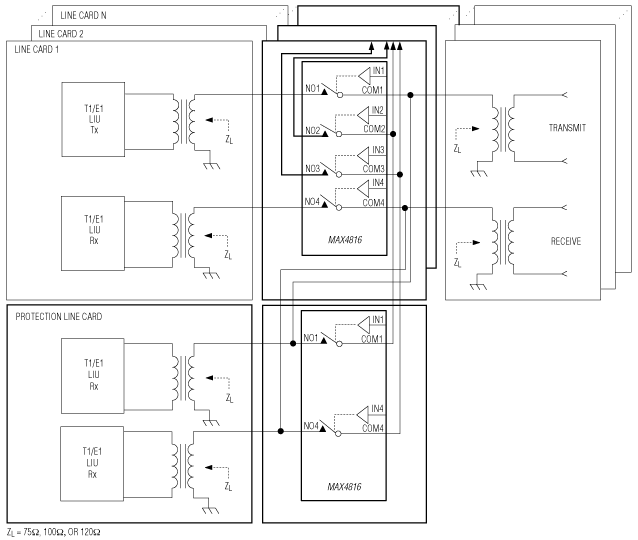

The MAX4815/MAX4816/MAX4817 high-bandwidth, low-on-resistance, quad-SPST analog switches are designed to serve as integrated T1/E1 protection switches for 1+1 and N+1 line-card redundancy applications. Each MAX4815/MAX4816/MAX4817 replaces four electromechanical relays, significantly reducing board space, simplifying PC board routing, and reducing power consumption. These devices operate with ±3.3V or ±5V dual supplies for applications requiring T1/E1 signal switching in the line side of the interface transformer. Internal voltage multipliers drive the analog switches, yielding excellent linearity and low 3.7Ω typical on-resistance within the T1/E1 analog signal range. This high-bandwidth (550MHz typical) family of products is optimized for low return loss and matched pulse template performance in T1/E1 long-haul and short-haul applications.

The MAX4815/MAX4816/MAX4817 are available in a tiny 16-pin, 5mm x 5mm, thin QFN package and are specified over the extended -40°C to +85°C temperature range.

Applications

* Add/Drop Multiplexers * Avionics * Base Stations and Base-Station Controllers * Data Acquisition * Digital Loop Carriers * Edge Routers * Industrial Applications * Multiservice Provisioning Platforms * Multiservice Switches (MSSs) * T1/E1 Redundancy Switching * Telecom Signal Switching * Test Equipment

* Quad-SPST NO, NC, and NC/NO Configurations

* Dual-Supply Operation from ±3.3V to ±5V

* Single-Supply Operation from +6V to +11V

* Hot Insertion Tolerant with No DC Path to the Supplies

* Low On-Resistance, RON = 3.7Ω (typ) and 6Ω (max)

* Over 550MHz, -3dB Signal Bandwidth

* Excellent Crosstalk and Off-Isolation Performance Over the T1/E1 Signal Spectrum: 110dB Crosstalk Attenuation at 1MHz

* Low Current Consumption of 2mA (max)

* -40°C to +85°C Extended Temperature Range

* Space-Saving, 16-Pin, 5mm x 5mm Thin QFN
