Dual 100MHz Current Feedback Amplifiers

The LT1229/LT1230 dual and quad 100MHz current feedback amplifiers are designed for maximum performance in small packages. Using industry standard pinouts, the dual is available in the 8-pin miniDIP and the 8-pin SO package while the quad is in the 14-pin DIP and 14-pin SO. The amplifiers are designed to operate on almost any available supply voltage from 4V (±2V) to 30V (±15V).

These current feedback amplifiers have very high input impedance and make excellent buffer amplifiers. They maintain their wide bandwidth for almost all closed-loop voltage gains. The amplifiers drive over 30mA of output current and are optimized to drive low impedance loads, such as cables, with excellent linearity at high frequencies.

The LT1229/LT1230 are manufactured on a proprietary complementary bipolar process. For a single amplifier like these see the LT1227 and for better DC accuracy see the LT1223.

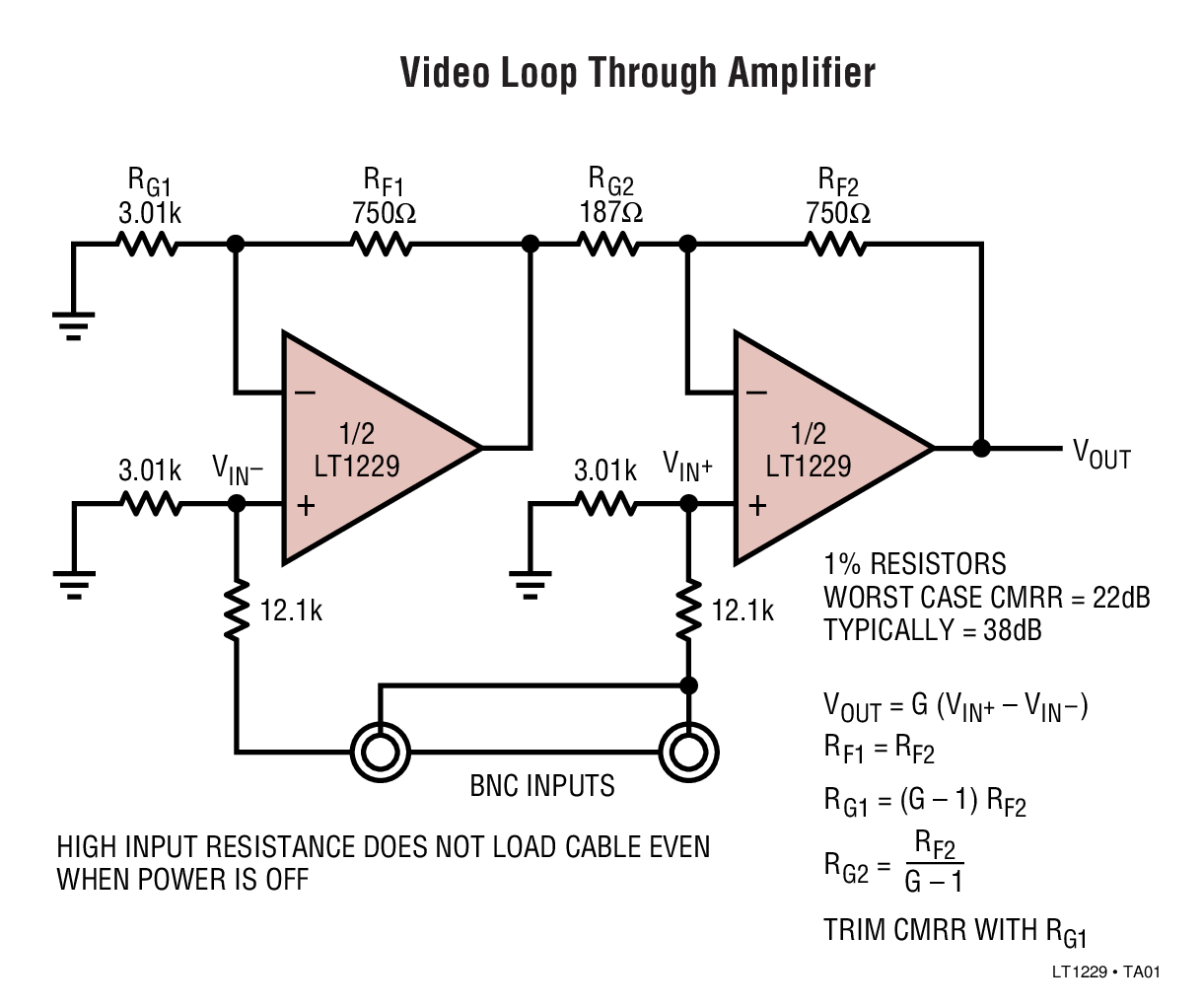

Applications

* Video Instrumentation Amplifiers

* Cable Drivers

* RGB Amplifiers

* Test Equipment Amplifiers

* 100MHz Bandwidth

* 1000V/µs Slew Rate

* Low Cost

* 30mA Output Drive Current

* 0.04% Differential Gain

* 0.1° Differential Phase

* High Input Impedance: 25MΩ, 3pF

* Wide Supply Range: ±2V to ±15V

* Low Supply Current: 6mA Per Amplifier

* Inputs Common Mode to Within 1.5V of Supplies

* Outputs Swing Within 0.8V of Supplies
