ELECTRONICS-SALON Prototype Screw Shield Board Kit For Arduino UNO R3, 0.1" Mini Terminal Block.

Prototype Screw Shield Board Kit For Arduino UNO R3, Mini Terminal Block.

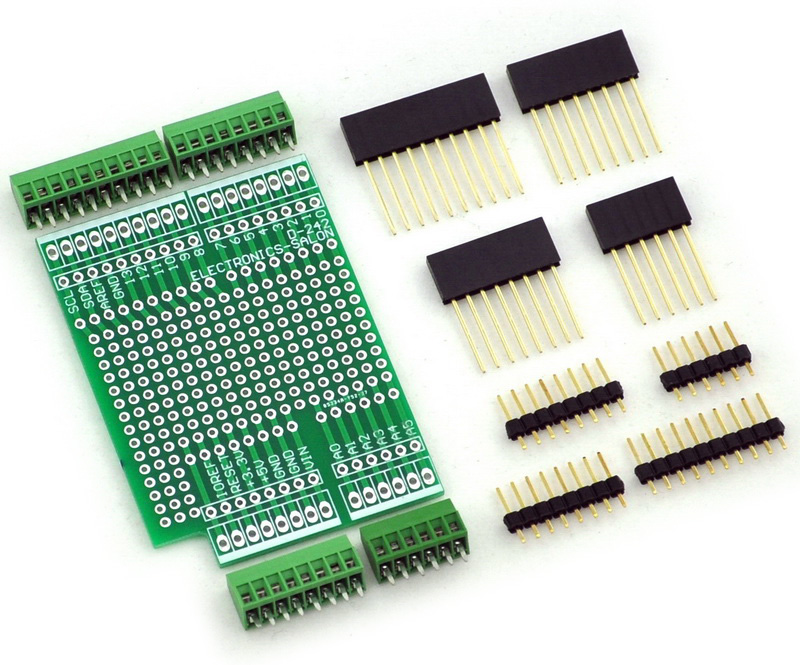

The Kit include Prototype PCB, Terminal Blocks, Male Headers and Female Header Sockets.

Unassembled, variety mount methods, you can make flexible use.

PCB:

FR-4 fiber glass PCB, dual copper layers, size 67.2mm x 48mm.

Pads grid / pitch 2.54mm / 0.1", hole diameter 0.8mm.

Terminal Block:

Pitch 0.1" / 2.54mm mini terminal blocks, 1x 10pin, 2x 8pins, 1x 6pins.

Wire range 26~18AWG, strip length 4.5mm, screws M1.6 steel, pin header and cage brass.

Male Header:

Pitch 0.1"/2.54mm, 1x 10pin, 2x 8pins, 1x 6pins. pin height (from PCB to top) 8.5mm / 0.34"

Female Header Socket:

Pitch 0.1"/2.54mm, 1x 10pin, 2x 8pins, 1x 6pins, pin length 15mm / 0.59"

Note: the item not include Arduino UNO module.
