Micropower, Regulated Charge Pump in 2 x 2 DFN

The LTC3221 family are micropower charge pump DC/DC converters that produce a regulated output at up to 60mA. The input voltage range is 1.8V to 5.5V. Extremely low operating current (8μA typical at no load) and low external parts count (one flying capacitor and two small bypass capacitors at VIN and VOUT) make them ideally suited for small, battery-powered applications.

The LTC3221 family includes fi xed 5V and 3.3V output versions plus an adjustable version. All parts operate as Burst Mode® switched capacitor voltage doublers to achieve ultralow quiescent current. The chips use a controlled current to supply the output and will survive a continuous short-circuit from VOUT to GND. The FB pin of the adjustable LTC3221 can be used to program the desired output voltage.

The LTC3221 family is available in a low profile (0.75mm) 2mm × 2mm 6-pin DFN package.

Applications

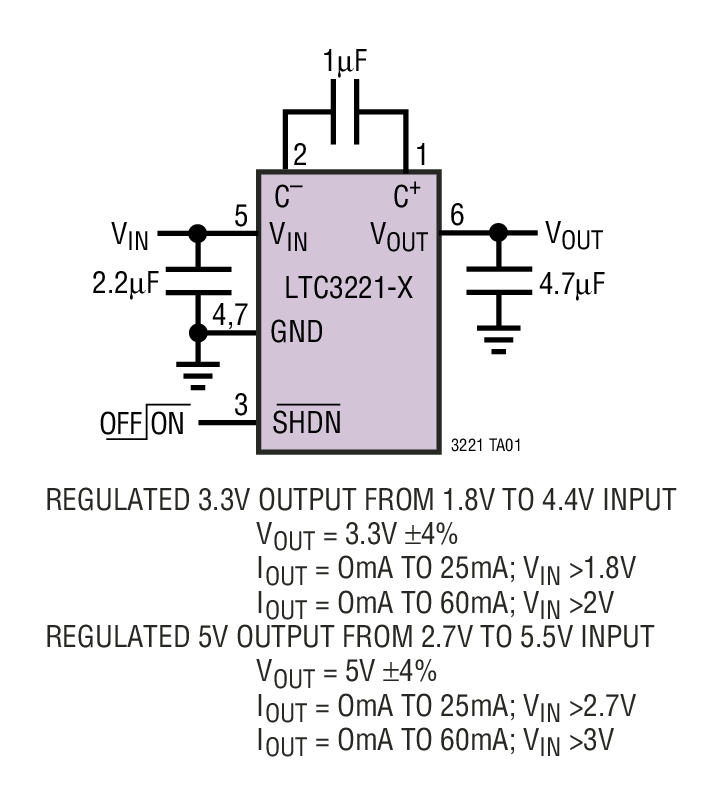

* Low Power 2 AA Cell to 3.3V Supply

* Memory Backup Supplies

* Tire Pressure Sensors

* General Purpose Low Power Li-Ion to 5V Supply

* RF Transmitters

* Glucose Meters

* Ultralow Power: 8μA Quiescent Current

* Regulated Output Voltages: 3.3V ±4%, 5V ±4%, ADJ

* VIN Range:

* 1.8V to 4.4V (LTC3221-3.3)

* 2.7V to 5.5V (LTC3221-5)

* Output Current: Up to 60mA

* No Inductors Needed

* Very Low Shutdown Current: <1μA

* Shutdown Disconnects Load from VIN

* Burst Mode Control

* Short-Circuit Protected

* Solution Profi le < 1mm

* Tiny 2mm × 2mm 6-Pin DFN Package
