R-TECH 524586 19mm Vandal Resistant Switch 36VDC 2A Flat Nickel Solder Pin
Rapid Electronics
RSS
4.34 GBP22.45 PLN
- Sklep zagraniczny
- MPN:
- 524586
- Kod:
- 52-4586
- Producent:
- R-TECH
- GTIN-13:
- 5053556005987
- Waluta:
- funt szterling
- Dodany do bazy:
- Ostatnio widziany:
- Zmiana ceny:
- +11% (02.12.2024)
- Poprzednia cena:
- 3.91 GBP
Sugerowane produkty dla vandal

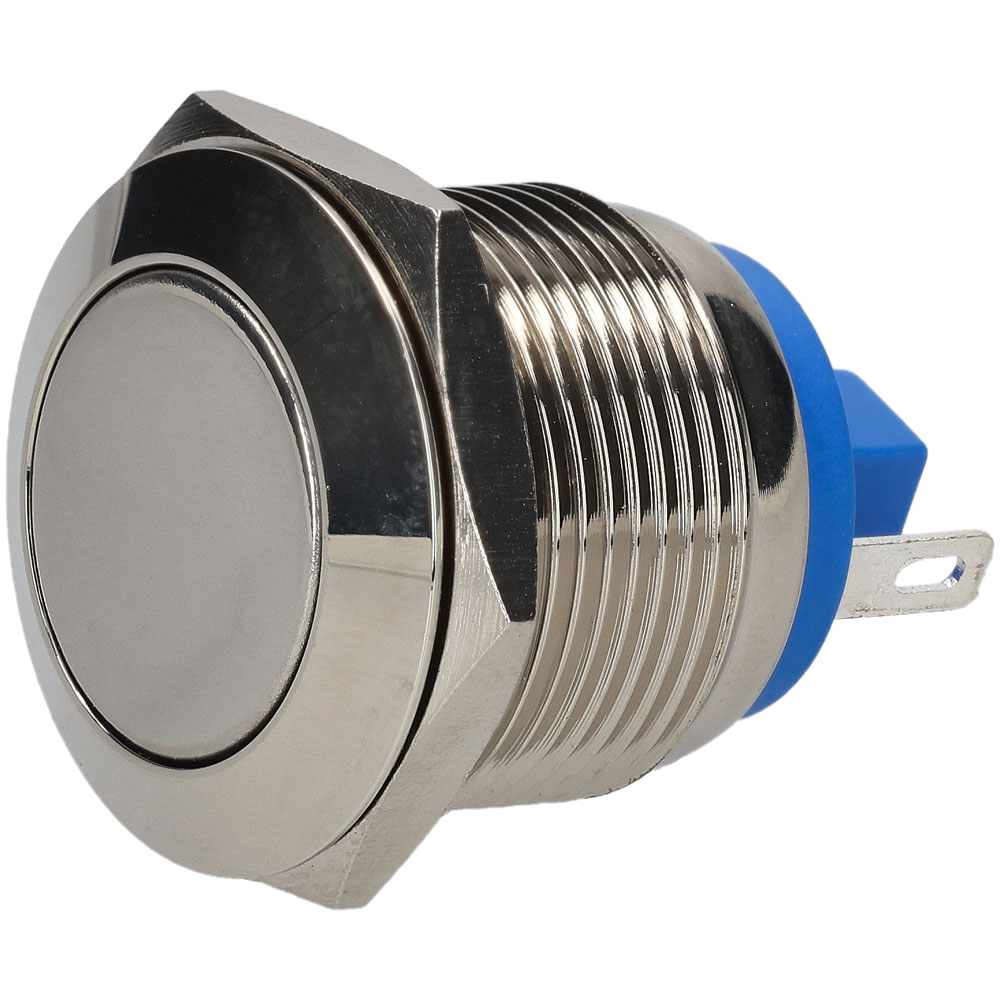

An IP65 rated nickel-plated vandal resistant push-button switch with a flat button and solder pin terminals.
* Momentary operation * SPST, 1x Off/(On) * Switching current: 2A * Switching voltage: 36V DC * Body material: Brass * Nickel-plated finish * Screw terminals * Actuating force: 5.5N * Contact material: Silver alloy * Contact resistance: ≤50mΩ * Dielectric strength: 2000V AC * Electrical life: 200,000 cycles * Front panel thickness: 1 to 8mm * Illumination: No * Installation diameter: 19mm * Insulation resistance: ≥1000MΩ * Mechanical life: 1,000,000 cycles * Protection type: IP65 * Temperature range: -20 to +55°C
