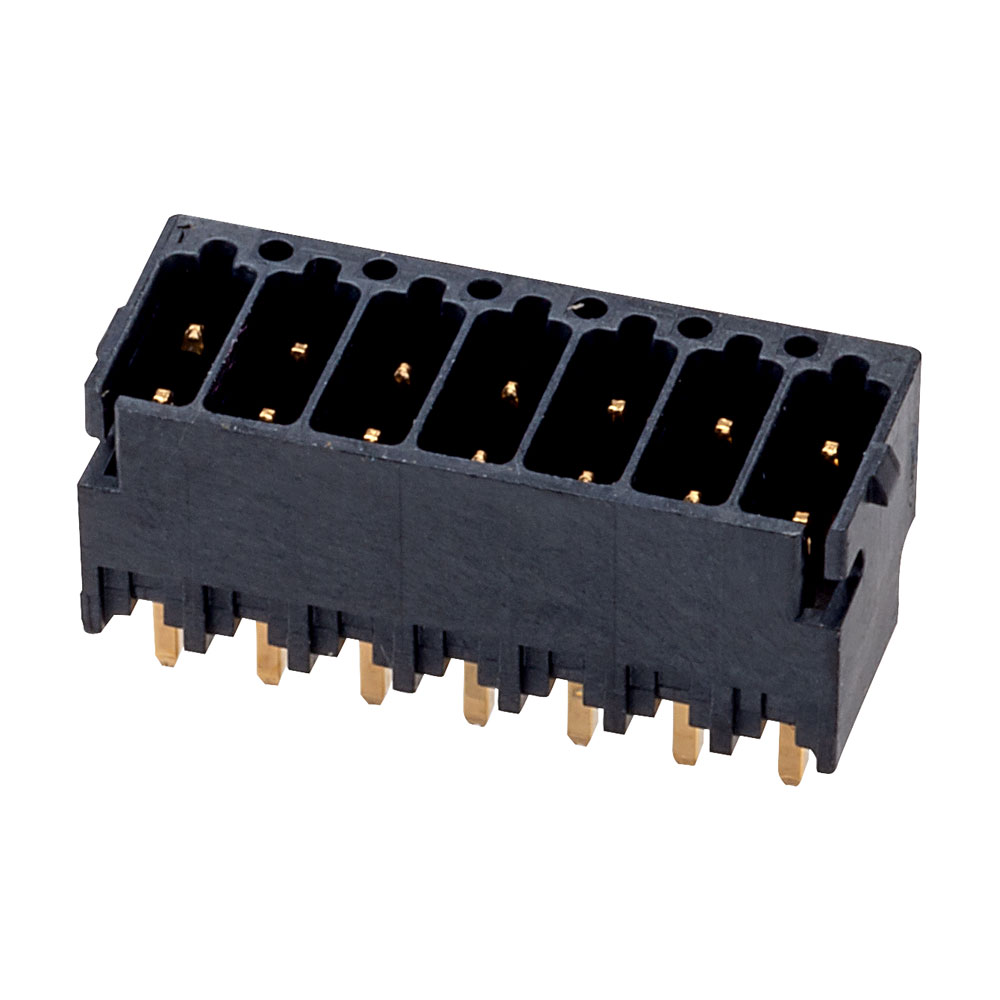

Phoenix 1859699 DMCV 0,5/ 7-G1-2,54 THR 2-Row PCB Header 6A 2x7 Way 2.54mm (5)

7-way, double row, 6A, 160V, 2.54mm pitch vertical PCB mounting feed-through headers from Phoenix Contact's DMCV 0,5/ G1-2,54 P20THR series.

Supplied as a SAMPLE SET with 5 items in a belt section. When used as part of a soldering process, please use items without SAMPLE marking.

* No. of ways: 7 * No. of rows: 2 * Total number of connections: 14 * Supplied in a 5-piece sample set * Nominal current: 6A * Rated voltage: 160V * Pitch: 2.54mm * Length: 7.39mm * Width: 18.28mm * Height: 7.1mm * Housing colour: black * Through-hole PCB mounting with linear double pinning * Small component size for applications where space is at a premium * Designed for integration into the SMT soldering process * Additional solder anchors reduce the mechanical strain on the soldering pads * Gold-plated contacts ensure transfer quality remains stable over the long term * Vertical connection enables multi-row arrangement on the PCB * Supplied in tape-on-reel packing according to IEC 60286-3 for automated mounting * Phoenix Contact type DMCV 0,5/ 7-G-2,54 P20THR * Phoenix Contact part no. 1859699
