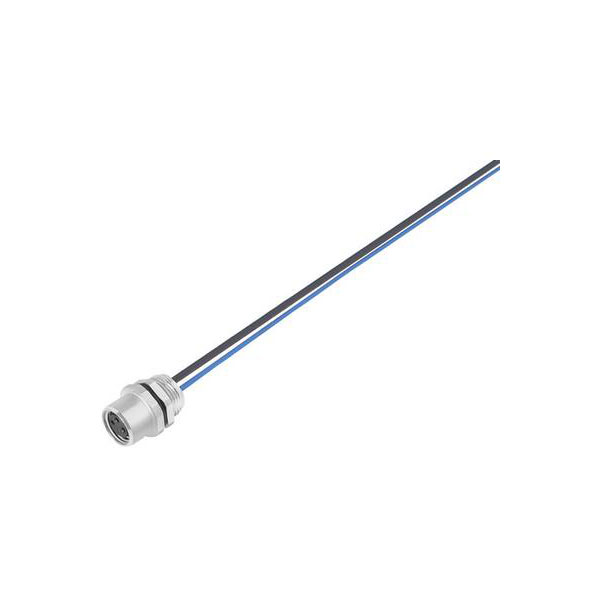

Binder 09 3418 00 03 Female 3 Pin with Single Wires Terminal

A female 3-pin IP67 silver sensor panel mount M8 screw connector with a single wire terminal.

* Number of poles: 3 * Termination: Single leads 0.25 * Wire gauge (mm): 0,25 mm² * Wire gauge (AWG): 24 * Degree of protection: IP 67 * Mechanical operation: >100 mating cycles * Upper temperature: +85 °C * Lower temperature: -40 °C * Rated voltage: 60 V * Rated impulse voltage: 800 V * Pollution degree: 3 * Overvoltage category: II * Material group: II * Rated current (40°C): 4 A * Volume resistivity: ≤ 3 mΩ * Material of contact: CuSn (bronze) * Contact plating: Au (gold) * Material of contact body: PA (UL 94 HB) * Material of housing: zinc diecasting, nickel plated
