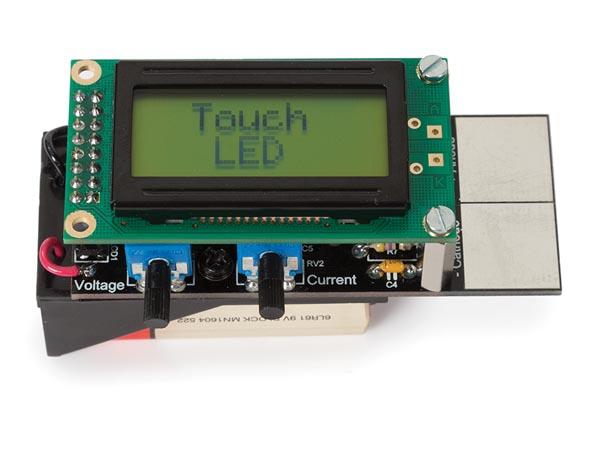

Whadda Led buddy kit

This is the Whadda WSMI198 LED Buddy, the WSMI198 DIY kit that simplifies your LED circuit construction. Just hold any type of LED against the contact pads of the LED Buddy to initiate the process. It intelligently detects the polarity of the LED, measures its forward voltage, and automatically calculates the series resistors you need to use.Compact in size and crafted from durable materials, this tool is a maker's best companion. No more issues with circuits!The LED Buddy features an 8x2 character LCD that provides clear visibility of your readings. It automatically calculates the series resistance (E12 series), detects the polarity of an LED, and measures the LED's forward voltage. Furthermore, it allows adjustable target current and voltage. The device has contact pads for easy LED testing, and an on/off button for convenient usage.Its dimensions are 75 x 32 x 48 mm, and it has a maximum target voltage of 0 - 30 V and a maximum target current of 2 - 26 mA. It has a power consumption of 40 mA while testing an LED and is powered by a 9 to 12 VDC or a 9V battery (not included).Features

* 8 x 2 character LCD * auto-calculates the series resistor (E12 series) * detects a LED’s polarity * measures the LED’s forward voltage * adjustable target current * adjustable target voltage * contact pads * power switch Specifications

* dimensions: 75 x 32 x 48 mm * calculated voltage adjustable from: 0 – 30 V * calculated current adjustable from: 2 – 26 mA * current consumption: 40 mA (when testing a LED) * power supply: 9 to 12 VDC max. or 9 V battery (not included)
