Sparkfun Mates Programmer

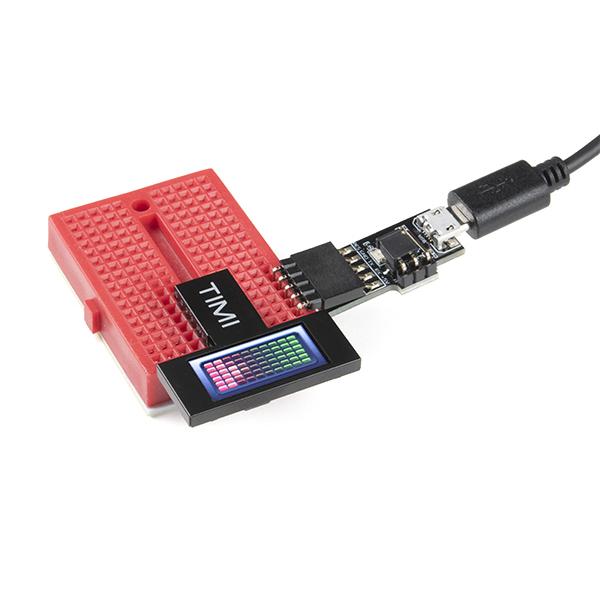

The Mates Programmer is a straightforward USB programmer designed for all Breadboard Mates products. It features a five-way programming interface and can also program other devices, such as "barebones" Arduino (Atmel) processors.The BreadBoard Mates Programmer provides an easy connection for a MatesBUS compatible device, like the TIMI-96. It connects to one side of the MatesBUS interface (5-pin), facilitating seamless programming of the device using Mates Studio.Equipped with a microUSB interface, the Mates Programmer connects to a PC using a standard microUSB cable. It then employs a standard 5-pin interface for programming the 4D Labs processors found in Breadboard Mates products, such as the TIMI-96. This 5-pin interface is one side of the MatesBUS Interface, which consists of two rows of five pins with a 2.54 mm pitch, spaced 7.62 mm apart, making it perfect for direct plug into a breadboard or a compatible adapter or development board.Note: The Mates Programmer does not come with a microUSB cable.Includes:

* 1x Mates Programmer * 1x 5-pin header straight * 1x 5-pin right angle header Documents:

* Datasheet
