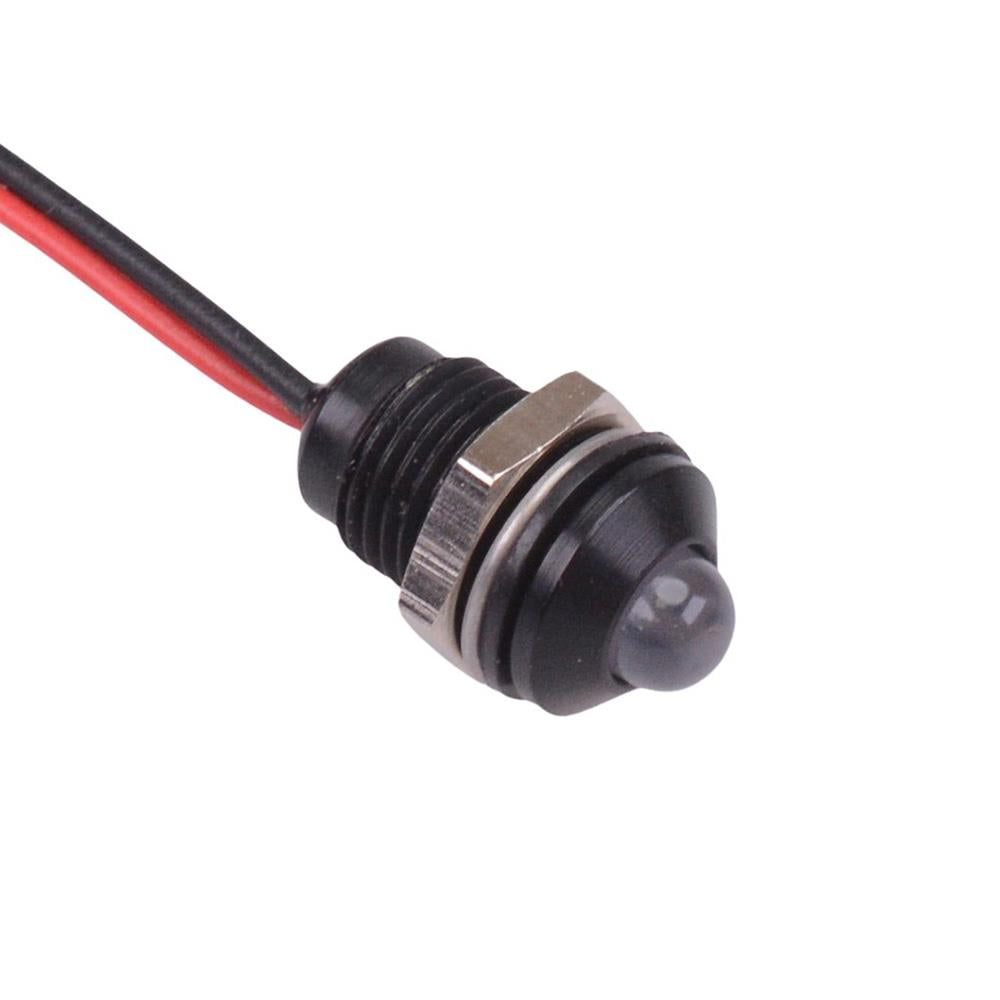

Q8P5BXXSB02E-X0787 Super Bright Blue Prominent 8mm 3.3VDC LED Panel Indicator IP67 APEM

The Q8P5BXXSB02E-X0787 is a super bright blue panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out and sealed to IP67. The indicator features a prominent black plated brass bezel and rear epoxy sealed 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.

* Colour: blue * Panel cut-out: 8mm * Voltage rating: 3.3VDC * Current rating: 20mA * Panel thickness: 7mm max * Brightness: 2200mcd * Operating voltage: 1.8 to 3.3VDC * Bezel material: black plated brass * Protection level: IP67 * Terminal type: rear epoxy 200mm wires * Length: 15.6mm * Diameter: 9.5mm * UL, REACH and RoHS certified
