VCO SMT w/Buffer Amplifier, 2.75 - 3.0 GHz

Analog Devices

VCO SMT w/Buffer Amplifier, 2.75 - 3.0 GHz RSS Sample
  • Darmowa próbka
MPN:
HMC416
Producent:
ANALOG DEVICES
Dodany do bazy:
Ostatnio widziany:

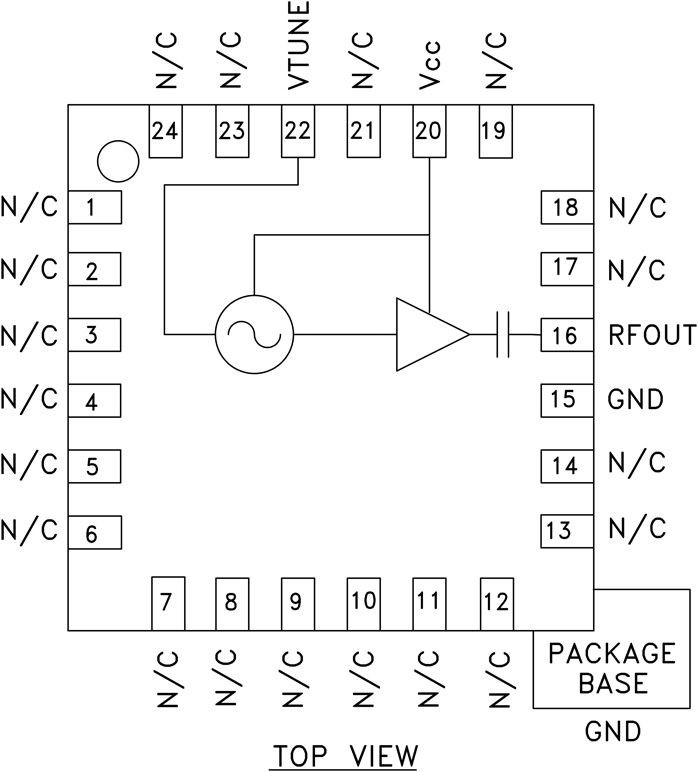

The HMC416LP4(E) is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO with integrated resonator, negative resistance device, varactor diode, and buffer amplifier. Covering 2.75 to 3.0 GHz, the VCO’s phase noise performance is excellent over temperature, shock, vibration and process due to the oscillator’s monolithic structure. Power output is 4.5 dBm typical from a single supply of 3V @ 37 mA. The voltage controlled oscillator is packaged in a low cost leadless QFN 4×4 mm surface mount package.

APPLICATIONS

* Wireless Infrastructure

* Industrial Controls

* Test Equipment

* Military

* Pout: +4.5 dBm

* Phase Noise: -114 dBc/Hz @100 k Hz

* No External Resonator Needed
