  1. Podgląd PDFa
    Do dokumentacji »

    PK613-45MIID-2K 2G CT

    Precision Plastic Potentiometer PK613MIId-45 with 2 tracks with resistance element SD wiper continuous rotation without limit stops resistance 2 x 2 kU ± 10% each with center tapping each with flat soldered connections short design according to drwng 0087W02-50:00C shaft Ý 6 mm length from support 24 mm article weight: 0,080 KG Potencjometry podobne PK613-46MIId-k 2g ct
    Producent:
    Meditronik
    Rozmiar:
    915 kB
    Stron:
    2
  2. Podgląd PDFa
    Do dokumentacji »

    1565Z02-003.001

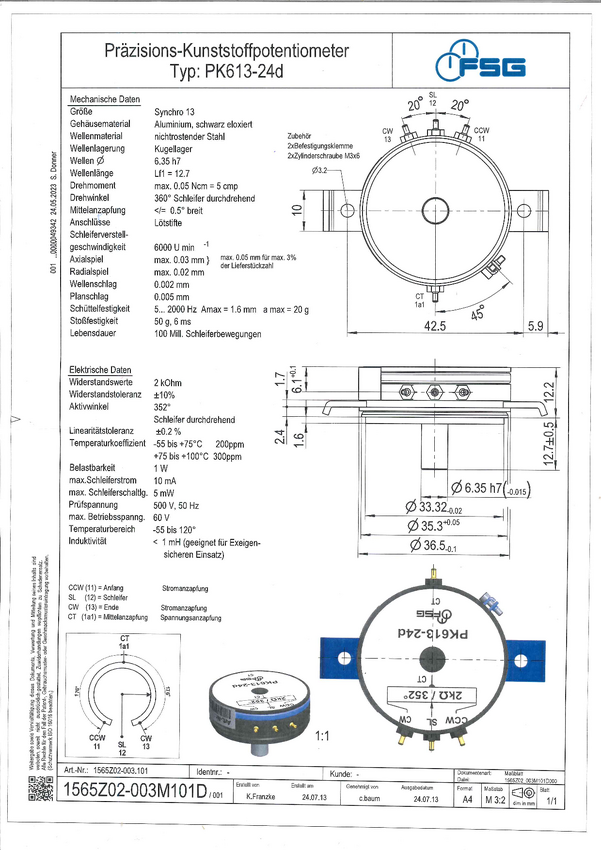

    Zdjecie podobnego prawdopodobny opis nie zweryfikowany Precision Plastic Potentiometer PK613-24d Resistance element ref 36474 Drawng 2485-1113-0300 order # 0325..PK Wiper: Rotation without limit stops. Resistance: 2k? +/- 10%/ over 352° with center tapping. Shaft 6,35 mm 12,7 mm ( 11,1 +1,6mm) long with PH ( d=2,1mm, L=3,7 mm ) Model podobny ale bez PH to PK613-24d-CT-2K PK613-24d-2K 1565Z02-003.101 Jedna z kart katalogowych podobnego 1565Z02-003-101.pdf
    Producent:
    Meditronik
    Rozmiar:
    535 kB
    Stron:
    1
  3. Podgląd PDFa
    Do dokumentacji »

    PW70-280-60-2x5k-26166PW

    Precision Angular Position Transmitter PW70-ÖF-60/60 oil-filled temperature range -60°C....+60°C winding 350° stops beginning and end tappings symmetrical at 280° with middle short-circuit range 60° and tapped resistance 2 x 5 kom +- 2% / 110° each with feather and high contact pressure shaft 6 mm fi 24 mm long torque max. 100 cmp Zamiennik dla starego modelu 26166PW
    Producent:
    Meditronik
    Rozmiar:
    445 kB
    Stron:
    1
  4. Podgląd PDFa
    Do dokumentacji »

    1566Z02-013.108

    Potentiometer - 352° movement x 5k Ohms x 3 - PK613MIIId-16 1566Z02-013.108 (PK613MIIId-16) Precision Plastic Potentiometer PK613-16 with 3 tracks PK613MIIId-16with resistance element SD Version according to 0422 PK Wiper continuous rotation without limit stops Resistance: 3 x 5 kOhm ± 10% / 352° Each with center tapping, with soldered wires, switching wire highly flexible! Type Lify, 0,25 mm2 (128x0,05) Shaft: O 6 mm Length from support 14 mm Version for ships i. e with sinter bearing Shock-proof version D
    Producent:
    Meditronik
    Rozmiar:
    154 kB
    Stron:
    1
  5. Podgląd PDFa
    Do dokumentacji »

    3601Z02-001.006

    Precision Potentiometer PW620-29/90/120MIId-G90 in cast casing with cable inlet for moist atmospheres IP code IP65 Intermediate gearbox, backlash reduced 2 separate windings at separate formers wiper continuous rotation without limit stops. Winding I/II: according to circuit 702 3 tappings with 120° offset 2 wipers with 180° offset resistance approx. 2087 U Ý of driving shaft 6mm Weight: 0,800 KG Manufacturers part number is PW620MIId-G90 (3601Z02-001.006) Customs Tariff code: 85 33 31 000
    Producent:
    Meditronik
    Rozmiar:
    151 kB
    Stron:
    1
  6. Podgląd PDFa
    Do dokumentacji »

    1700Z04-065.039

    W70DPrecision Potentiometer in cast iron case to IP40 enclosure rating. Potentiometer is 2k Ohms +-1% across 350 Degree movement (within 360 degree mechanical rotation) ( Brak - Centre tapping, Wiper pressure 15-18 p. ???? ) Size Depth 27.5mm excluding the 24mm Shaft is 6mm x 24mm (shaft # 0001W01-00:0108) Fixing 2 X M4 (5mm deep) Used for Thruster Position sensing, dancer bar/dancing roller and any high performace/high reliability applications. Other resistance values are available on request. Manufact
    Producent:
    Meditronik
    Rozmiar:
    142 kB
    Stron:
    1
  7. Podgląd PDFa
    Do dokumentacji »

    1565Z02-003.104

    Precision Plastic Potentiometer PK613-24d Resistance element ref 36474 Drawng 2485-1113-0300 order # 0325..PK Wiper: Rotation without limit stops. Resistance: 2k? +/- 10%/ over 352° with center tapping. Shaft 6,35 mm 12,7 mm(=11,1+1,6=12,7 mm long with PH ( prawdopodobnie d=2,1 mm, L=3,7 mm ) Model podobny ale bez PH to PK613-24d-CT-2K PK613-24d-2K 1565Z02-003.101
    Producent:
    Meditronik
    Rozmiar:
    141 kB
    Stron:
    1
  8. Podgląd PDFa
    Do dokumentacji »

    1571Z80-269.001

    Precision Angular Position Potentiometer PW620 1571Z80-269.001 1571Z80-269.001 Precision Angular Position Transmitter PW620/90-42MIId in servo casing size 20 with 2 isolated windings on isolated winding bodies winding each 360° wiper rotate without limit stops each with 4 at 90° shifted tappings each with 2 at 90° shifted wipers resistance each approx. 5217 ? shunt resistor each approx. 1304 ? sense of rotation right with flat solder connection short design shaft 6 mm Ý 14 mm long ship's design, that means
    Producent:
    Meditronik
    Rozmiar:
    90 kB
    Stron:
    1
