Quad DPDT Audio/Data Switches in UCSP/QFN

The MAX4758/MAX4759 quad double-pole/double-throw (DPDT) analog switches operate from a single +1.8V to +5.5V supply. These switches feature low 0.5Ω on-resistance for audio switching and a low 25pF capacitance for data switching.

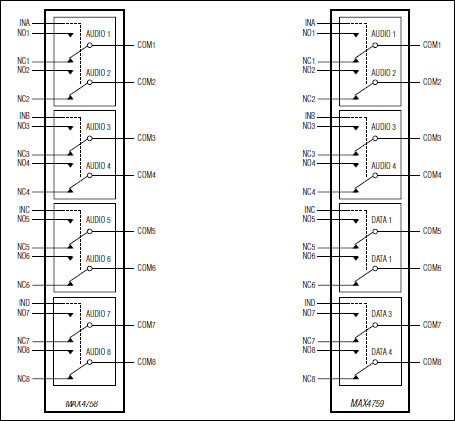

The MAX4758 has eight 0.5Ω on-resistance switches to switch audio signals. The MAX4759 has four 0.5Ω on-resistance switches to route audio signals and four 25pF capacitance switches to route data signals. The MAX4758/MAX4759 have four logic inputs to control the switches in pairs.

The MAX4758/MAX4759 are available in a small 36-pin (6mm x 6mm) thin QFN and 36-bump (3mm x 3mm) chip-scale package (UCSP™).

Applications

* Audio-Signal Routing * Cell Phones * Notebook Computers * PDAs/Handheld Devices * Speaker-Headset Switching * USB Signal Switching

* Data and Audio Signal Routing

* Low On-Resistance (0.5Ω) Audio Switches

* 0.2Ω On-Resistance Flatness

* 0.1Ω Channel-to-Channel Matching

* Low-Capacitance (25pF) Data Switches (MAX4759)

* 0.2ns Skew (MAX4759)

* 0.03% THD

* +1.8V to +5.5V Supply Range

* Rail-to-Rail Signal Handling

* Tiny 36-Bump UCSP (3mm x 3mm)

* 36-Pin Thin QFN (6mm x 6mm)
