ELECTRONICS-SALON Low Frequency Square Wave Oscillator Module, 2 4 8 32 64 128 256 512 1024 2048Hz.

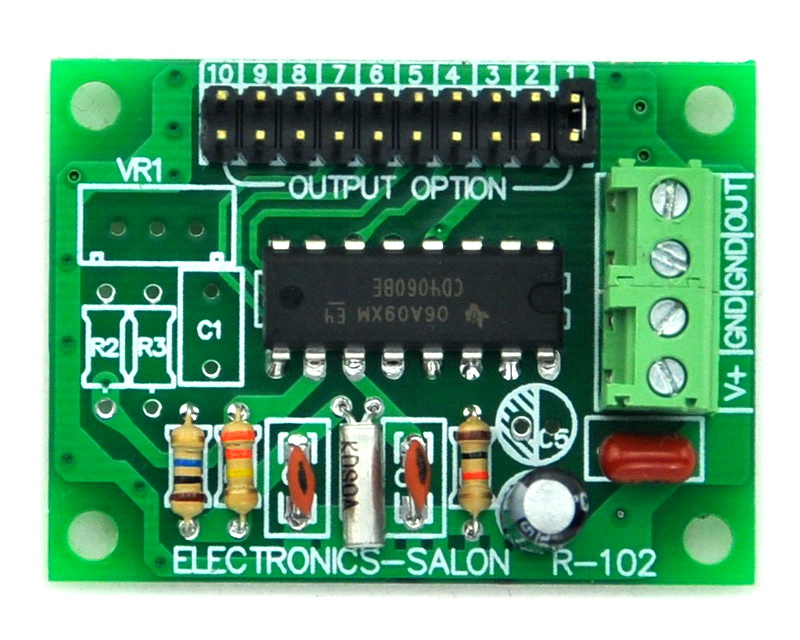

Low Frequency Square Wave Oscillator Module.

Output Frequency: 2, 4, 8, 32, 64, 128, 256, 512, 1024, 2048 Hz, on board the jumper to choose.

Operating Voltage: 5 to 12V DC.

Operating Current: < 5mA.

Output Duty Cycle: 50% ±5%

Accuracy: +/-20 ppm

Operating Temp. Range: 0 to 70°C.

Module Size: W46mm x L34mm x H15mm.

Part Number: R-102A.
