ELECTRONICS-SALON 220Vac Mains Power ON Delay Soft-start Protection Module, with 12 Vdc Regulator.

CZH-LABS

ELECTRONICS-SALON 220Vac Mains Power ON Delay Soft-start Protection Module, with 12 Vdc Regulator. RSS 26.00 26.00 USD105.63 PLN
  • Sklep zagraniczny
MPN:
MD-A720/220V-1
Producent:
CZH-LABS
Waluta:
dolar amerykański
Dodany do bazy:
Ostatnio widziany:

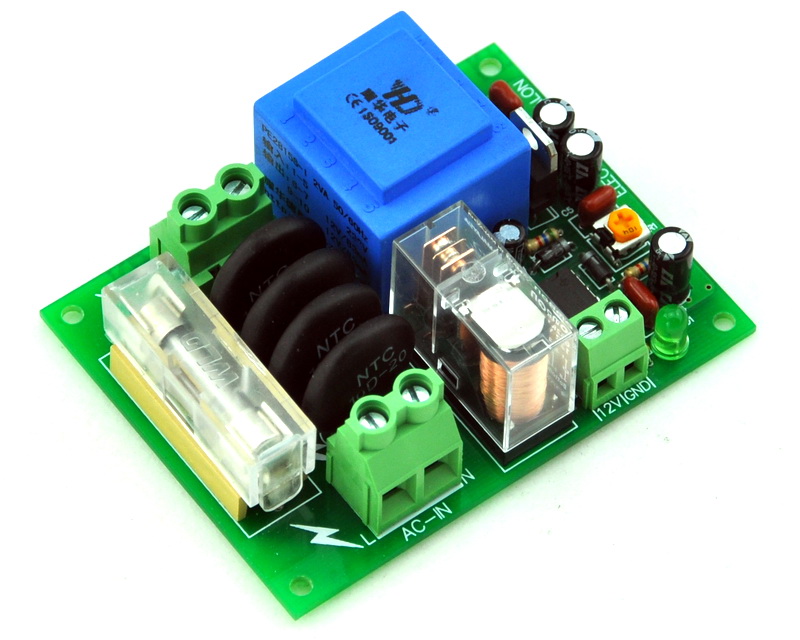

220Vac Mains Power ON Delay Soft-start Protection Module, with power transformer and regulator circuit.

This item has been assembled, and electrical test passed.

Used a power transformer, rather than series capacitor directly buck, so more secure.

Adjustable delay time 1 ~ 10 seconds.

A regulated 12Vdc output, flexible application for you.

High quality terminal block, easy connection wire, FR-4 Fiber glass PCB, G2R-1-E 16 amp industrial relay, fully encapsulated 2VA power transformer, high quality NTC components 10D20, high quality 6x30mm 20A fuse and fuse holder.

Operating voltage: 200 ~ 240Vac mains.

Rated load current: max. 16 amp.

Rated load power: 2500 watts.

Regulated DC output: 12Vdc / 50mA max.

Delay time adjust range: 1 ~ 10 seconds(adjust the VR1 potentiometer on board).

Size: 65mm(L) x 85mm(W) x 30mm(H), (2.6 x 3.4 x 1.2 inch).

Screw terminal block:

CN2, CN3: wire range: 26 ~ 10 AWG, strip length 8mm.

CN1: wire range: 26 ~ 12 AWG, strip length 5mm.
