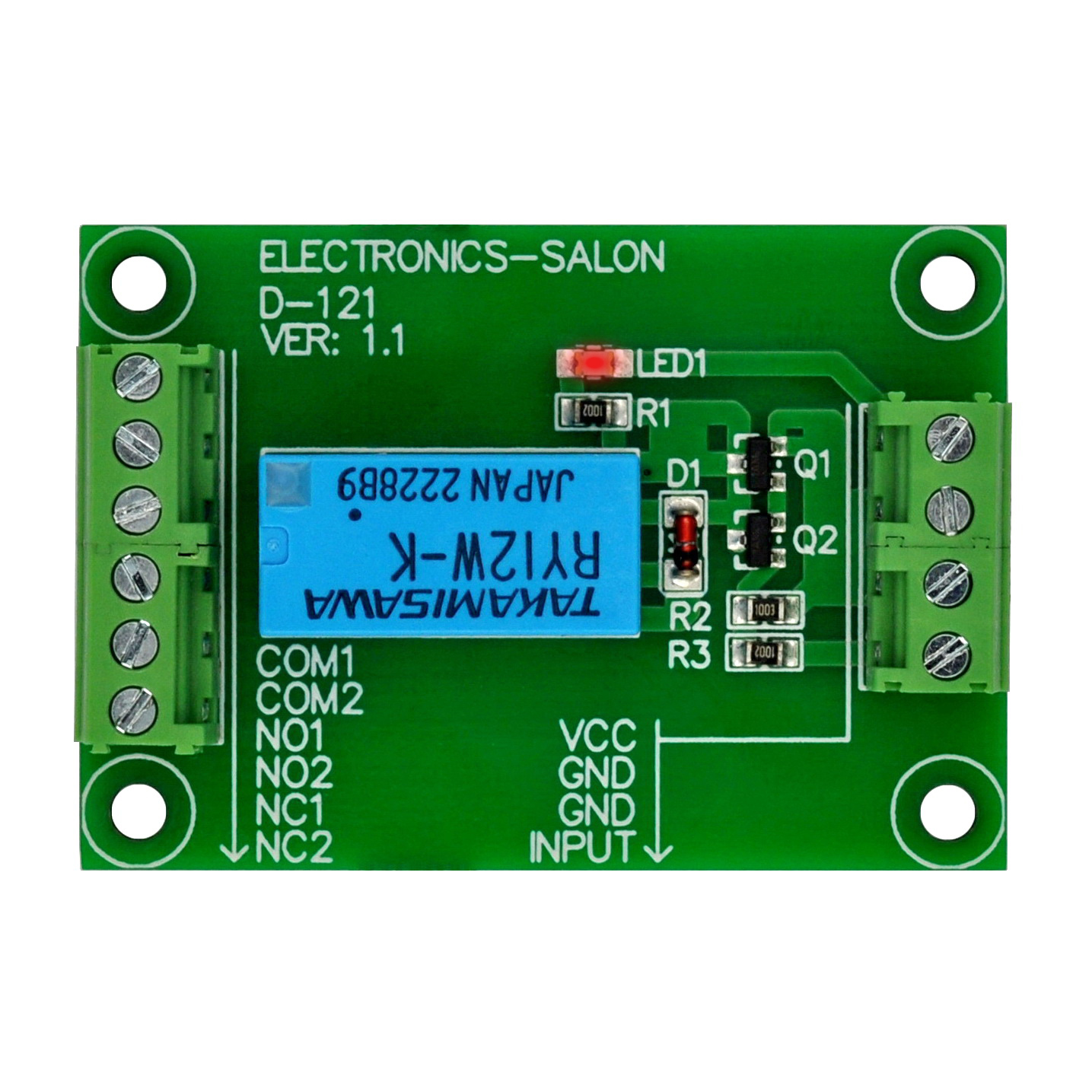

ELECTRONICS-SALON DPDT Signal Relay Module, 12Vdc, RY12W-K Relay. Has Assembled.

1 Piece DPDT Signal Relay Module Board.

This item has been assembled, and electrical test passed.

High quality signal relay, FR-4 Fiber glass PCB, darlington transistor driving relay, LED indicator for relay action.

Size: 50 x 34.9 x 16 mm (approximately 2" x 1.37" x 0.64"), PCB thickness: 1.6mm.

Power Supply: 12V DC / 30mA (relay ON).

Input control signal voltage:

0V - 0.5V Low stage (relay is OFF),

0.5V – 2.5V (unknown state).

2.5V - 24V High state (relay is ON).

Input control signal high state current:

2.5V: 0.1mA

5V: 0.35mA

12V: 1.1mA

20V: 1.9mA

Relay:

RY12W-K signal relay.

Contact Material: Gold Overlay Silver-Palladium.

This is a very simple module board, no paper specifications, any questions, feel free to tell me.
