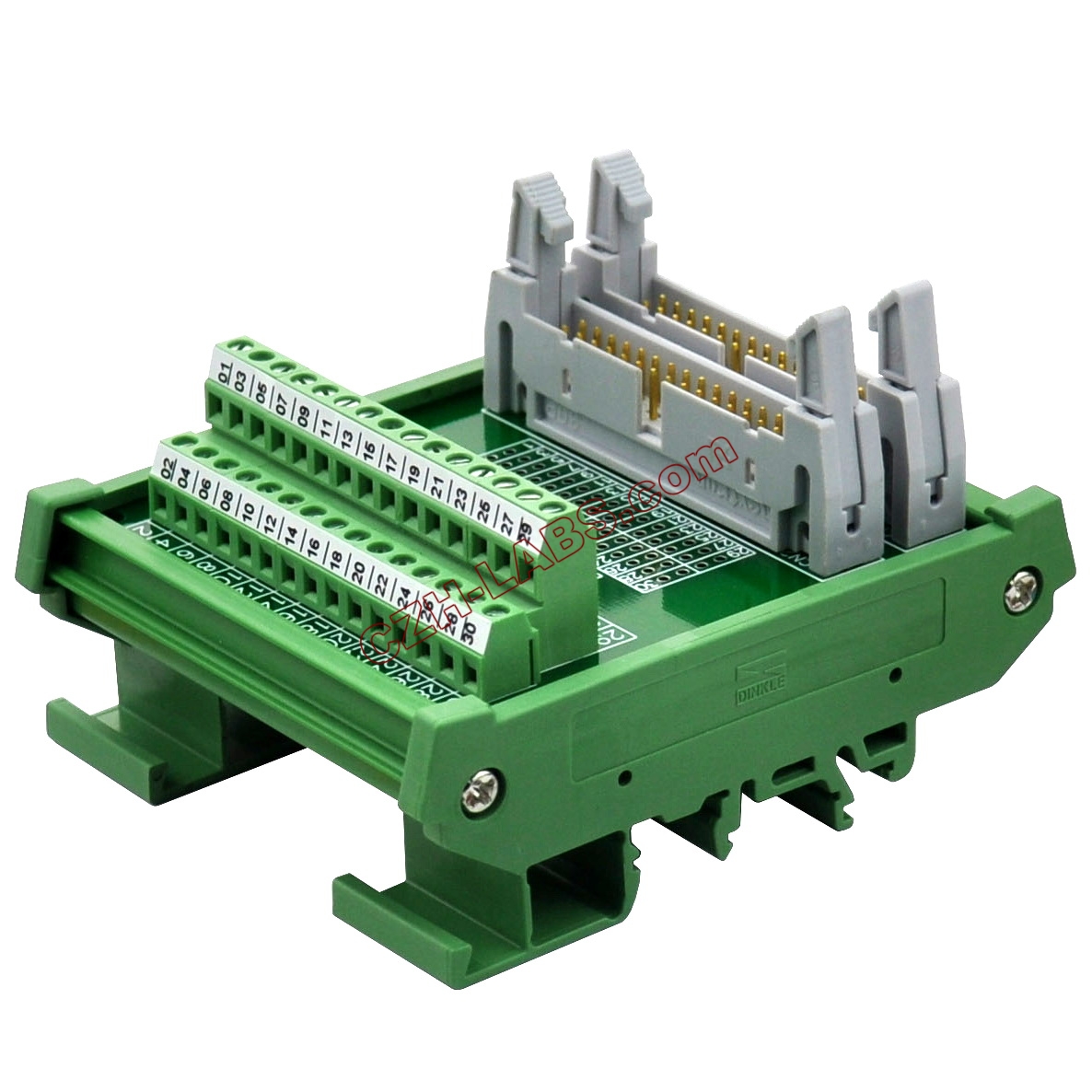

DIN Rail Mount Dual IDC30 Pitch 2.54mm Male Header Interface Module Breakout Board.

CZH-LABS

DIN Rail Mount Dual IDC30 Pitch 2.54mm Male Header Interface Module Breakout Board. RSS 33.00 33.00 USD134.07 PLN
  • Sklep zagraniczny
MPN:
MD-D1152T-1
Producent:
CZH-LABS
Waluta:
dolar amerykański
Dodany do bazy:
Ostatnio widziany:

Features:

1, Dual pitch 2.54mm/0.1" IDC-30 male header connectors. IDC1, IDC2 and screw terminal 1:1:1 connects for per line. Dual IDC connectors to convenient for multiple devices connections and controls.

2, Miniaturized high quality screw terminal block, position pitch 3.81mm / 0.15”, clear terminal block position marking label, match the position corresponding to the IDC connector.

3, Solder connection holes 2 per line, supports addition of 2.54mm / 0.1" pin headers.

4, FR-4 fiber glass PCB, dual copper layers.

5, High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for PCB screw mount use.

Terminal Block:

Pitch 3.81mm/0.15" screw terminal block.

Wire range 26 to 16AWG / 2.5mm square.

Strip length 5mm / 0.2”

Screws - M2, steel, Cr3+ Zn plated.

Pin header and Cage - Brass.

Specification:

Rated voltage: 60V.

Rated current: 500mA / per pin.

Operating temperature: -20 to 70 Celsius.
