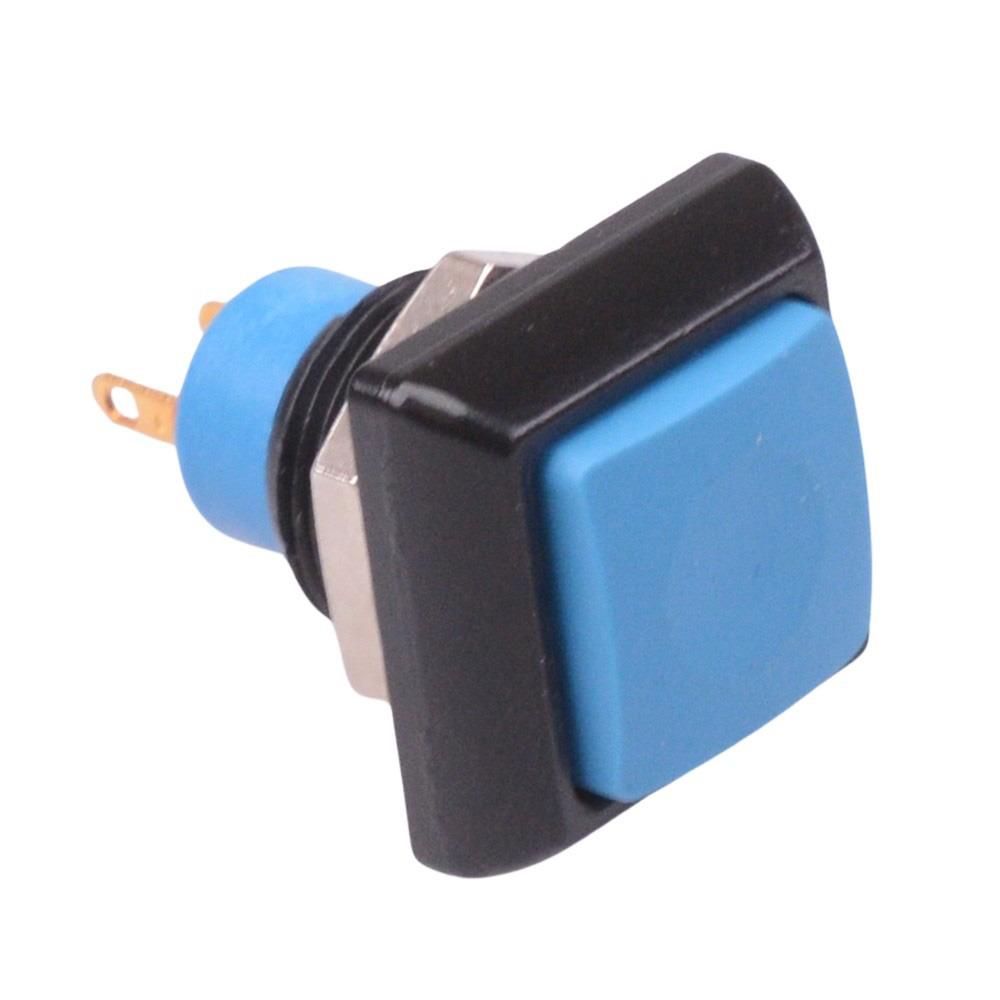

IPC3SAD1 APEM Blue Square Momentary NO 12mm Push Button Switch SPST IP67

The IPC3SAD1 is a blue momentary square push button switch with a 12mm bushing. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments including automotive.

* Momentary NO operation * Solder lug terminals * SPST contacts * 12mm bushing * Sealed to IP67 * Panel cut-out: 13.6mm * Solder lug terminals * Gold plated silver contacts * Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC * Panel thickness: 1.5-4mm * Dimensions: 26.3 x 17.5 x 17.5mm (height x width x length)
