XA1E-BV3SG12TR Unibody 16mm Emergency Stop Switch 1NO-2NC IDEC

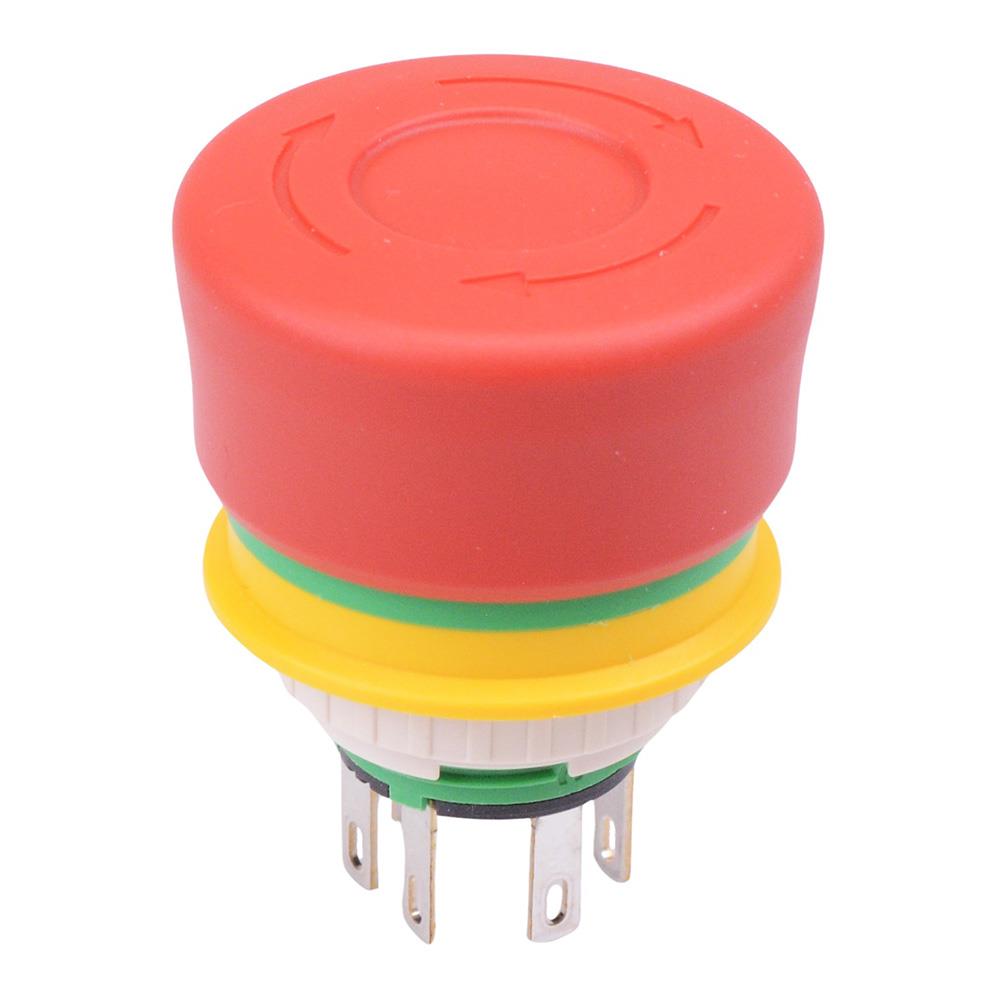

The XA1E-BV3SG12TR is a short body e-stop switch compliant with ISO13850, ensuring the highest level of safety and functionality. The XA series features a minimalist installation footprint and unibody construction incorporating IDEC's 3rd generation reverse energy structure. The emergency stop switch features a green status indicator to check the operating status and an escape structure preventing foreign objects form being caught in operation. The switch is certified for outdoor use and is designed for applications including robotics, automated vehicles, EV charging, remote controls and many more.

* Fail safe design * Contacts: 1NO-2NC * Rated current: 5A * Rated insulation voltage: 250V * Panel cut-out: 16.2mm * Panel thickness: 0.8-3.7mm * Behind panel depth: 17mm * Head diameter: 30mm * Solder/tab #110 terminals * ISO13850:2015 compliant
