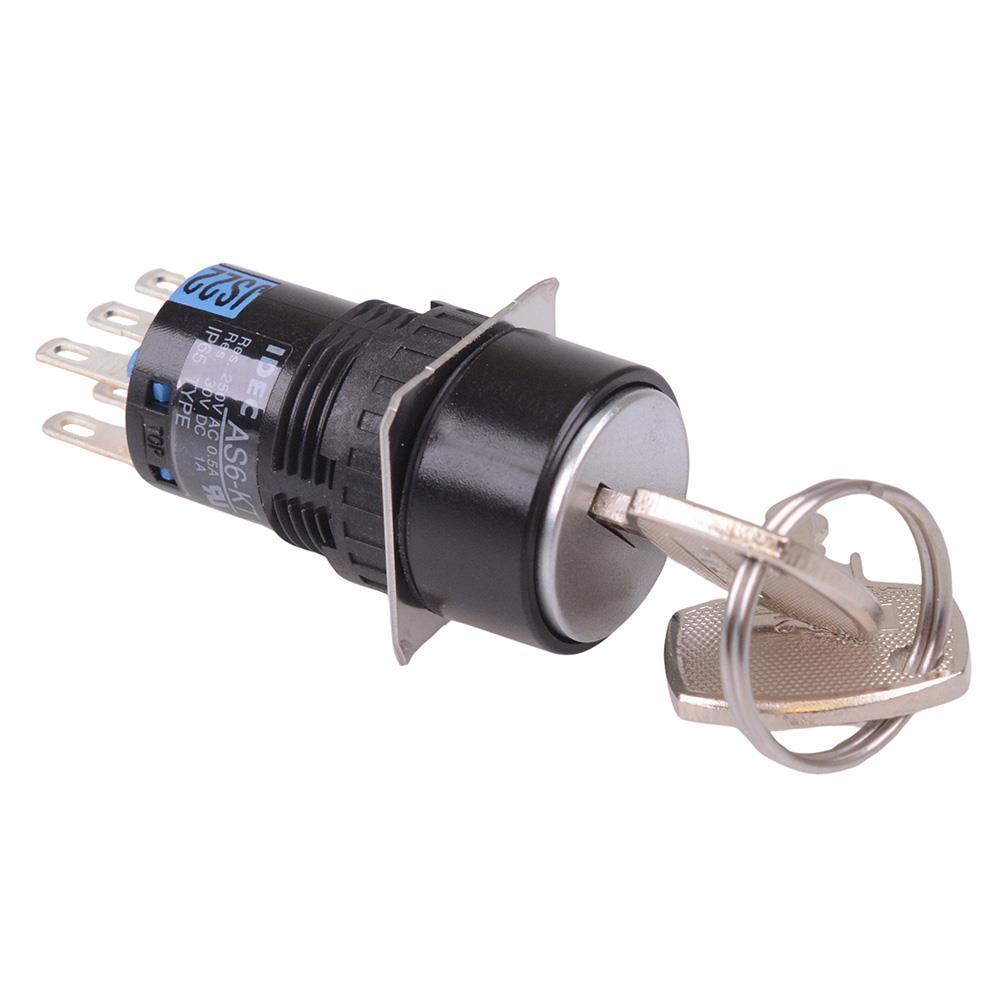

AS6M-2KT2PB 2 Position 16mm Latching Key Switch DPDT IDEC

The AS6M-2KT2PB is a 2 position latching light duty industrial key switch by IDEC, featuring DPDT contacts and IP65 protection rating. The switch features a short 22mm body length and is suitable for 16.2mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation, use in factories and offices.

* Latching operation * 90° 2 positions * Key removable in left position * DPDT contacts * IP65 protection rating * Contact rating: 3A 250V * Panel cut-out: 16.2mm * Panel thickness: 0.5-6mm * Solder terminals * Dimensions: 39 x 18mm (length x diameter)
