2604-1103 WAGO 3-Way 5mm Push-In PCB Terminal Block 4mm² 32A
Switch Electronics
RSS
16.43 GBP84.98 PLN
- Sklep zagraniczny
- MPN:
- 2604-1103
- Kod:
- 489346
- Producent:
- WAGO
- GTIN-13:
- 5063200350318
- Waluta:
- funt szterling
- Dodany do bazy:
- Ostatnio widziany:
- Zmiana ceny:
- -0.48% (09.11.2025)
- Poprzednia cena:
- 16.51 GBP
Sugerowane produkty dla simplyfying

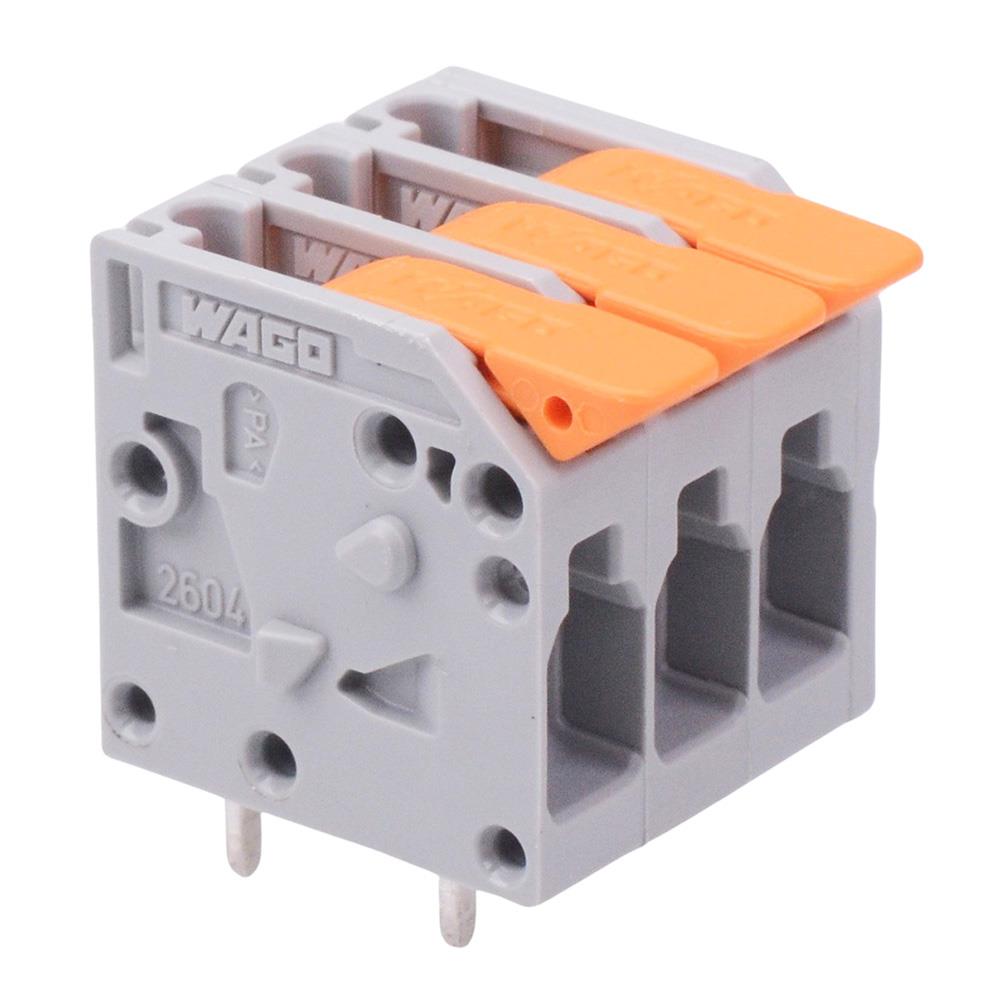

The 2604-1103 is a 3 pole terminal block by WAGO featuring cage clamp levers and push-in termination for solid and stranded cables. The terminal block features 5mm pin spacing and features a tool free intuitive design. The clamping units can be held open simultaneously, simplyfying the connection of multi-core cables.
* Current rating: 32A * Voltage rating: 630V * Wire size: 0.2 to 4mm² (24-12AWG) * Wire strip length: 11-13mm * Pin spacing: 5mm * Width: 17.4mm * Height: 20.7mm * Height from the surface: 16.7mm * Depth: 19.2mm * Contact material: tin plated copper * Housing material: PA66
Elecena nie prowadzi sprzedaży elementów elektronicznych, ani w niej nie pośredniczy.
Produkt pochodzi z oferty sklepu Switch Electronics
