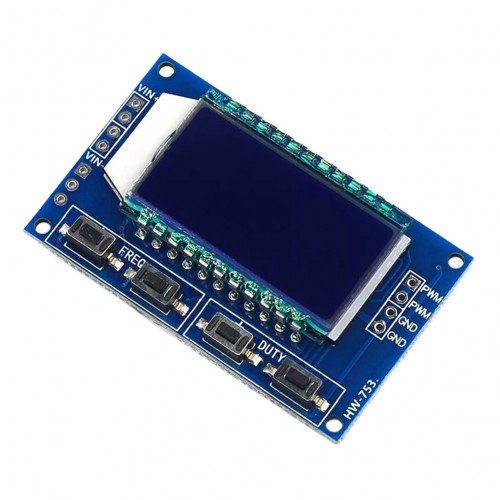

XY-LPWM Signal Generator Module

Support Serial operation Wide frequency range,high precision LCD can display frequency and duty ratio,Easy to operate Output of three-channel PWM at the same time, Adjustable frequency, 3-channel frequency output consistent,duty ratio can be independently adjusted,

Specifications: 1.Operating voltage3.3~30V; 2. Current consumption of module: 20mA (at 5V power supply) 3. Output voltage amplitude: equals to the input voltage amplitude 4. Frequency range1Hz~150KHz; 5. Frequency accuracy: In each range of accuracy is about 2% 6. Signal load capacity: Output current can be around 5~30ma 7. Ambient temperature:-20~+70°
