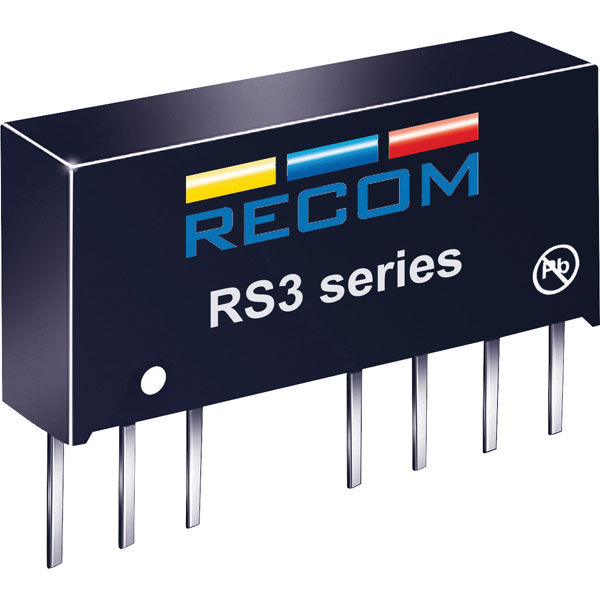

Recom 10004209 RS3-243.3S 3W DC/DC Converter 18-36V In 3.3V Out

The Recom SIP 8 3W RS3-0505S Isolated DC/DC converter has an input voltage range of 2:1. The Single Output converter has a wide operating temperature range -40°C to +71°C and features an On/Off control. These are just two of the characteristics of this converter which is ideal for highly sophisticated industrial designs. The RS3-0505S is supplied with the standard 1kVDC isolation.

* Grid pitch: 2.54mm * Input voltage: 18 - 36V DC * Insulation voltage: 1000V DC * Output current: 600mA * Output voltage: 3.3V DC * Power: 3W * Specification: SIP8 * Efficiency: 77-78% * Operating Temperature from -40°C to +71°C * Dimensions: 21.8(L) x 9.2(W) * Type: DC to DC Converter RS3 Series * Manufacturer's part: RS3-243.3S
