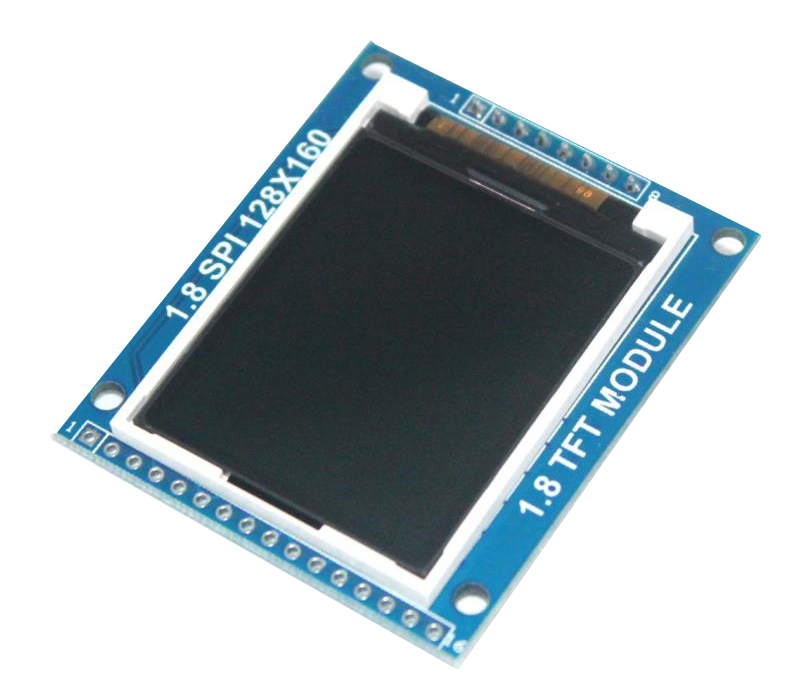

Opencircuit 1.8" TFT module SPI

This sign is the easiest way to add a nice display to any project. Because it only needs 4 connections, it is suitable for every microcontroller. The 1.8 "display has 128x160 color pixels available. The TFT driver (ST7735R) can display 18-bit color (262.144 colors).

In addition, this module also has an SD card socket, so that bitmaps can be loaded from an FAT16 / FAT32 formatted SD card.

Properties:

* 5V / 3.3V Compatible * Display Mode: 1.8 "TFT SPI Interface, Transmissive, Default white * Colors: 262K * Backlight Type: LED * Resolution: 128W x 160H Pixels * Screen size: 28.03 mm x 35.04 mm * SPI Bus interface * IC Driver: ST7735R

Pinout:

* GND: Power Ground * VCC: 5V power input * CS: Chipselect for LCD * SDA: LCD Data for SPI * SCL: SCLK for TFT Clock * RS / DC: Command / Data Selection * RESET: LCD controller reset, active low * CS (SD-CS): Chipselect for TF Card * CLK (SD Clock): SPI Clock * MOSI (SD-DI): SPI Master out Slave in * MISO (SD-DO): SPI Master in Slave out
