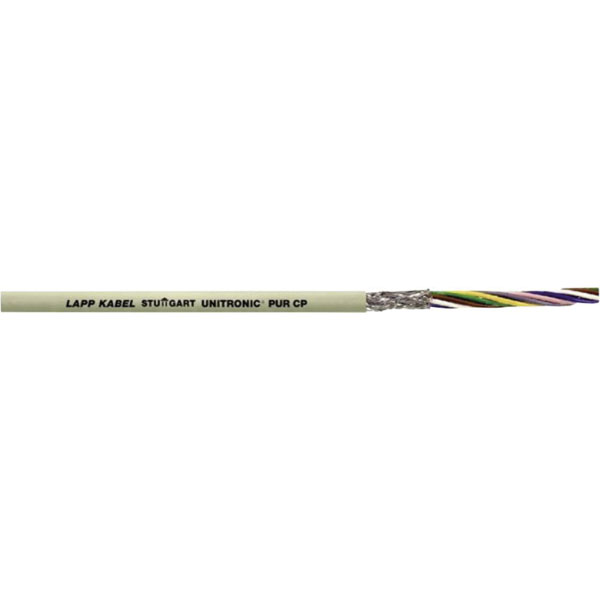

LAPP 0032851 PUR CP (TP) Pebble Grey Data Cable 3 x 2 x 0.25mm²

This screened data cable with twisted pairs from LAPP has a pebble grey polyurethane sleeve and is ideal for harsh environmental conditions where robust and screened cables with small dimensions are necessary.

* Bend radius (no. of ODs for fixed installation): 6 * Bend radius (no. of ODs for flexible installation): 15 * Cable features: Shielded, Flame-retardant, Oil-resistant, UV-resistant * Cable Type: UNITRONIC® PUR CP (TP) Data cable * Colour: Pebble grey (RAL 7032) * Core layout: finely stranded * Cross section 3 x 2 x 0.25mm² * Insulation material: Polyurethane * Max. temperature range (fixed installation): +80°C * Max. temperature range (flexible installation): +70°C * Min. temperature range (fixed installation): -40°C * Min. temperature range (flexible installation): -5°C * No. of leads 6 * Nominal voltage: 250V (not for heavy current applications) * Outside diameter: 7.1mm * Shielded: Yes * Sold per metre: Yes * Standards: DIN VDE VDE 0814 (DIN 47414) or VDE 0812 * Manufacturer's part 0032851

This cable will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of cable will result in a single 7-metre cable being supplied, not 7 one-metre lengths.
