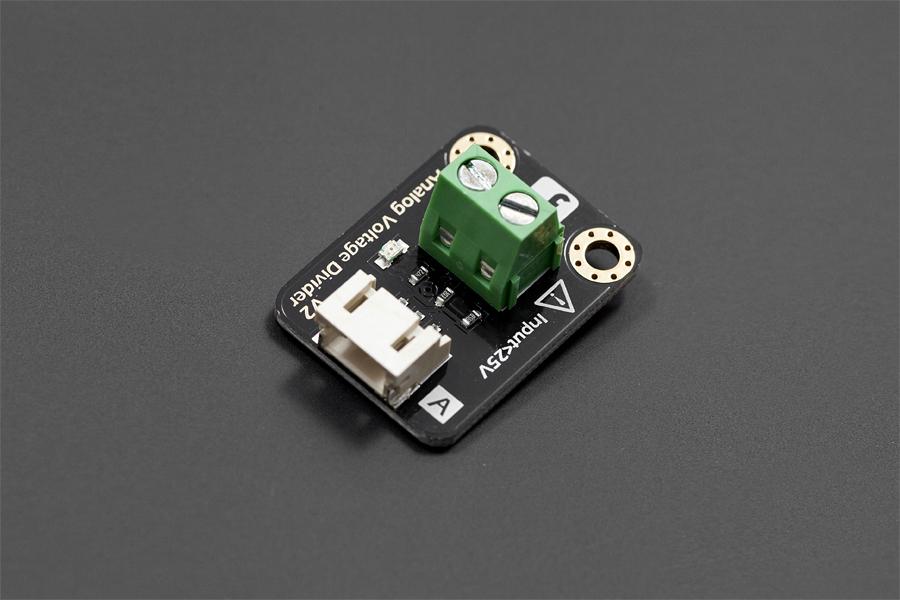

DFRobot Gravity: Analog Voltage Divider V2

The Analog Voltage Divider V2 can detect the supply voltage from 0.0245V to 25V. This module is based on resistor divider principle. The voltage detection module allows the input voltage to reduce 5 times. As the Arduino analog input voltage is normally maximum 5V, the input voltage of analog voltage detection module can not exceed 5Vx5 which is 25V.

Notice: The new version of analog sensor port pin mapping has been changed as the following two features. Improvement List

* Wide voltage range from 3.3V to 5V * Standard assembling struct (two 3mm holes with multiple of 5cm as interval) * Easily re cognitive interfaces of sensors ("A" for analog and "D" for digital) * Icons to simply illustrate sensor function * High quality connector * Immersion gold surface Specifications

* Interface: Analog * Input voltage (DC): Maximum 25V, Minimum 0.0245V * Detects the supply voltage upto 25V * Size:22x30mm (0.87x 1.18 in) Documents

* Wiki Doc * Schematic
