LilyGO TTGO T-Display V1.1 ESP32 - met 1.14 inch TFT Display - 16MB

Opencircuit

Sklep zagraniczny

MPN:: G511-03
Kod:: 57662
Producent:: Lilygo
Waluta:: euro
Dodany do bazy:: 23.01.2025
Ostatnio widziany:: 11.11.2025
Zmiana ceny:: +5% (27.09.2025)
Poprzednia cena:: 11.90 EUR

Układ scalony; TP4054-42; kontroler ładowania; 4,5-6,5V; Li-Lon battery charger; 4,2V; 800mA; -40+85*C; SOT23-5; SMD; RoHS

Sugerowane produkty dla tp4054

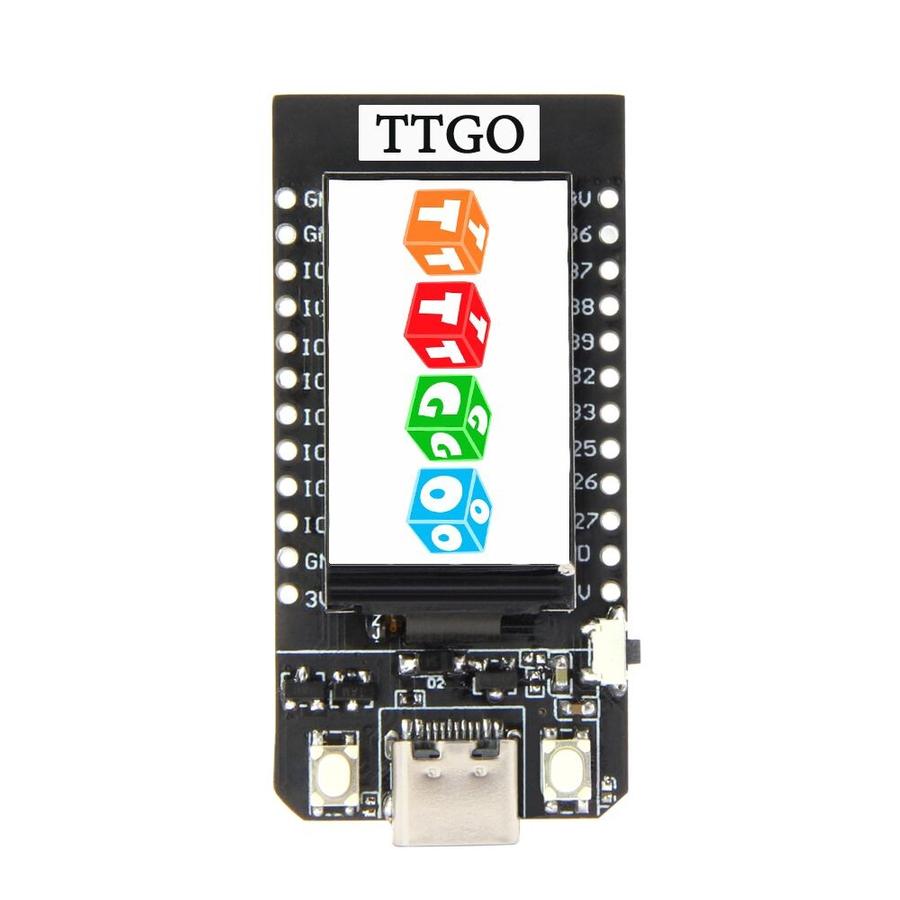

The TTGO T-Display with 16MB flash from LilyGO is a microcontroller based on an ESP32 with a built-in 1.14 inch TFT display. The CP2104 USB to serial converter makes it easy to program, even as an Arduino. The board has a USB-C connection with which it can be programmed and / or powered (USB-C cable not included).

Specifications

* Supply voltage: 3.3V DC or 5V DC * GPIO Spanning: 3.3V * * ESP32 chip (240Mhz dual core processor) * SRAM: 520KB * Flash memory: 4MB * Built-in Wi-Fi * Built-in Bluetooth * Built-in 1.14 inch (240x135) TFT (IPS) display (ST7789) * Built-in push button * Built-in Li-ion / Li-Po battery charging circuit: TP4054 chip can charge up to 500mA * Battery connector: 2p Molex Picoblade * PCB dimensions: 51.4 x 25.2mm

Package contents

* 1x TTGO T-Display V1.1 board * 1x Battery cable: 2p Molex Picoblade * 1x Male header set

Library TTGO-T-Display
