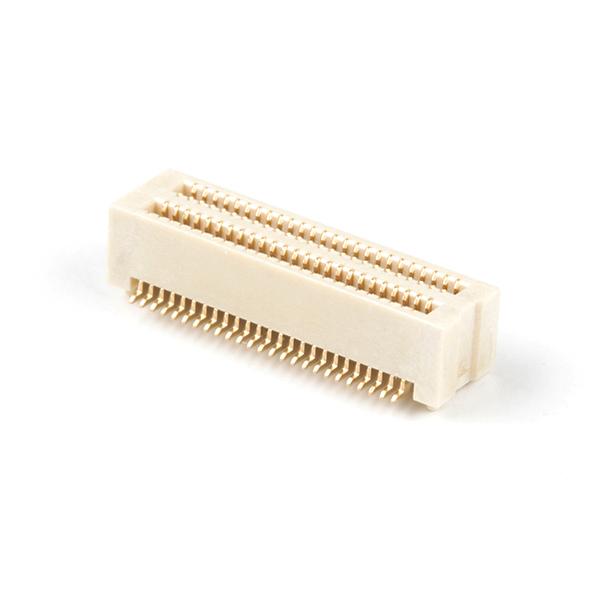

Sparkfun Board to Board Double Slot Male Connector - 50 pin, 0.5mm

The Sparkfun Board to Board Double Slot Male Connector is a 50 pin, 0.5mm surface mount connector, primarily used on Alchitry FPGA boards. It facilitates the stacking of Alchitry FPGA Boards by being soldered to the underside of the board. It's a vital component for those looking to maximize the functionality and versatility of their Alchitry FPGA Boards.These connectors are sold individually. To fully equip the topside of an Alchitry Board, four of these connectors are required. The connectors are precisely designed and robust, ensuring a reliable connection between stacked boards.The Sparkfun Board to Board Double Slot Male Connector opens up a new world of possibilities for FPGA board users. Whether you're building a complex system or simply looking to expand the capabilities of your current setup, these connectors provide a simple and effective solution.These connectors are not just functional, but also durable and reliable. They are designed to withstand regular use and maintain a consistent connection, ensuring the smooth operation of your FPGA boards. With their 50 pins and 0.5mm pitch, they offer a high degree of flexibility and precision in your projects.Please refer to the dimensional drawing and the Alchitry Elements Eagle Library for further information and guidance on usage.
