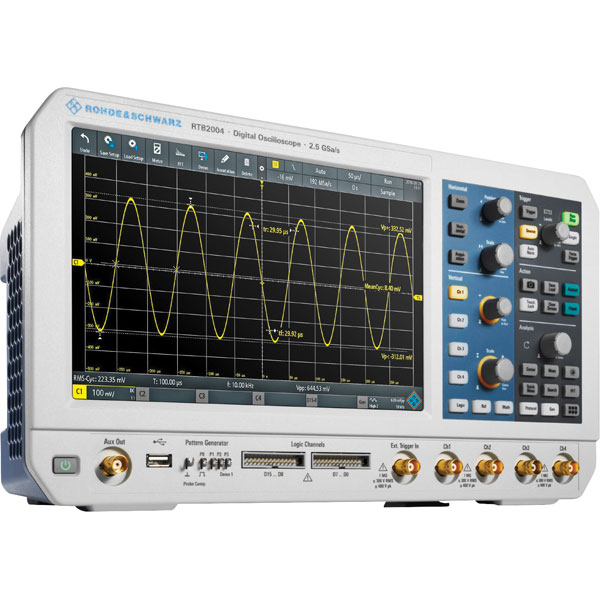

Rohde & Schwarz 1333.1005P04 RTB2K-74 Digital Oscilloscope 70 MHz 4 Channel

The Rohde & Schwarz RTB2K-74 is a 4 channel 70MHz digital storage oscilloscope that also has multimeter functions, logic analyser and function generator.

The scope has 10-bit ADC, 10 Msample per channel memory depth and 10.1" touch screen, with a fast 1.25 Gsample/s sampling rate. The excellent specifications and performance with the intelligent control concepts mean that this DSO is perfect for use in university laboratories, whether its trouble shooting embedded designs, or for production and service departments.

* Bandwidth 70 MHz

* Four Analogue inputs

* 10.1in 1280 x 800 pixel Touch-screen display

* 10 Bit A/D Converter for 4-fold higher resolution

* 10 MSample Memory depth/channel

* 1.25 Gsample/s Sampling rate

* Supplied with mains lead, 4x probes, user manual

* Rohde & Schwartz RTB2K-42 model

Bandwidth70MHz No. of analogue inputs4 Time base1ns to 500s/div Vertical deflection1mV to 5V/div Input impedance1MΩ Input couplingAC, DC, GND Input voltage max.300V Channel memory depth10MP Resolution10 Bit Channel sample rate1.25GS/s InterfacesUSB , USB host , LAN Display10.1in 1280 x 800 pixel touch screen Power supply230V AC Dim (L x W x H)152 x 390 x 220mm Weight2.5kg
