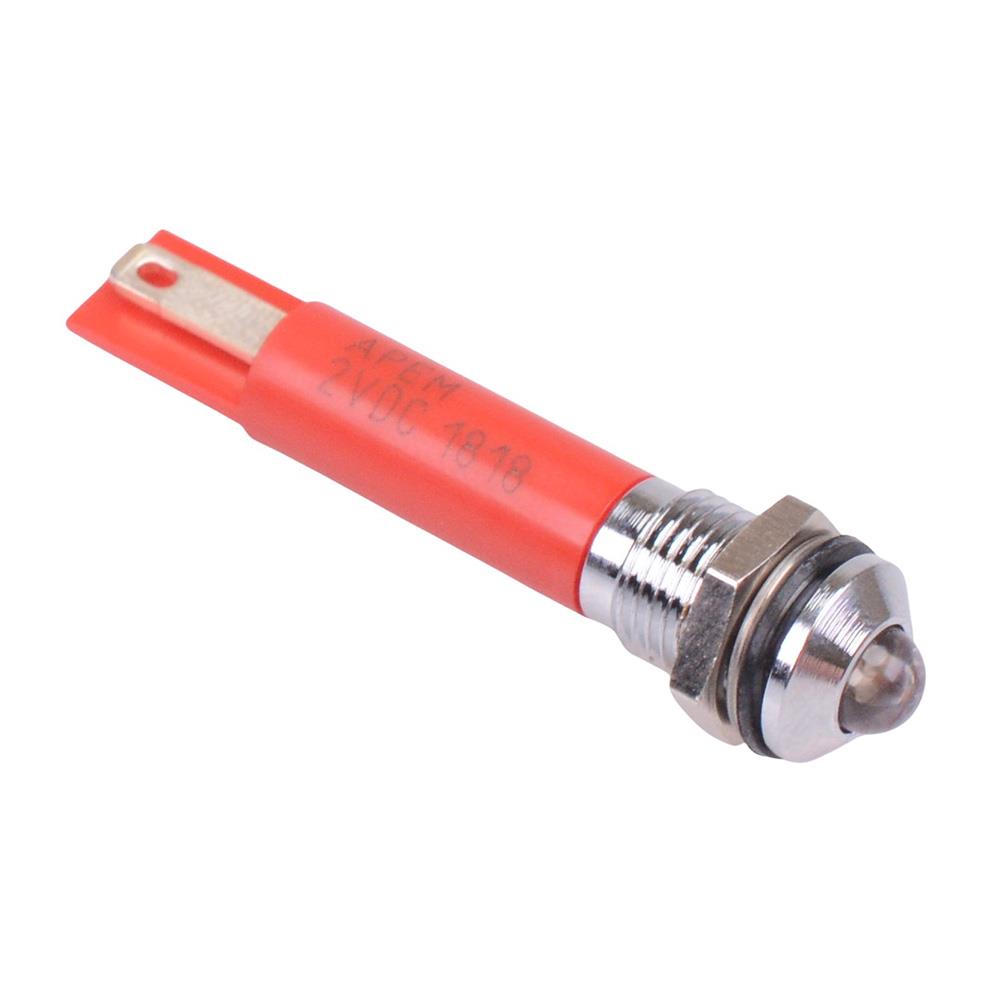

Q8P1CXXSR02E Super Bright Red Prominent 8mm 2.2VDC LED Panel Indicator IP67 APEM

The Q8P1CXXSR02E is a super bright red panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out and sealed to IP67. The indicator features a prominent chrome bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.

* Colour: red * Panel cut-out: 8mm * Voltage rating: 2.2VDC * Current rating: 20mA * Panel thickness: 7mm max * Brightness: 5000mcd * Operating voltage: 1.8 to 3.3VDC * Bezel material: chrome plated brass * Protection level: IP67 * Terminal type: quick connect / solder 2.8 x 0.8mm * Length: 33.85mm * Diameter: 9.4mm * UL, REACH and RoHS certified
