Q22F1BXXY24E Yellow Flush 22mm 24VDC LED Panel Indicator IP67 APEM

Switch Electronics

Q22F1BXXY24E Yellow Flush 22mm 24VDC LED Panel Indicator IP67 APEM RSS 89.85 89.85 73.05 + VAT
MPN:
Q22F1BXXY24E
Kod:
492631
Producent:
APEM
Dodany do bazy:
Ostatnio widziany:
Zmiana ceny:
+0.1% (06.12.2025)
Poprzednia cena:
89.76

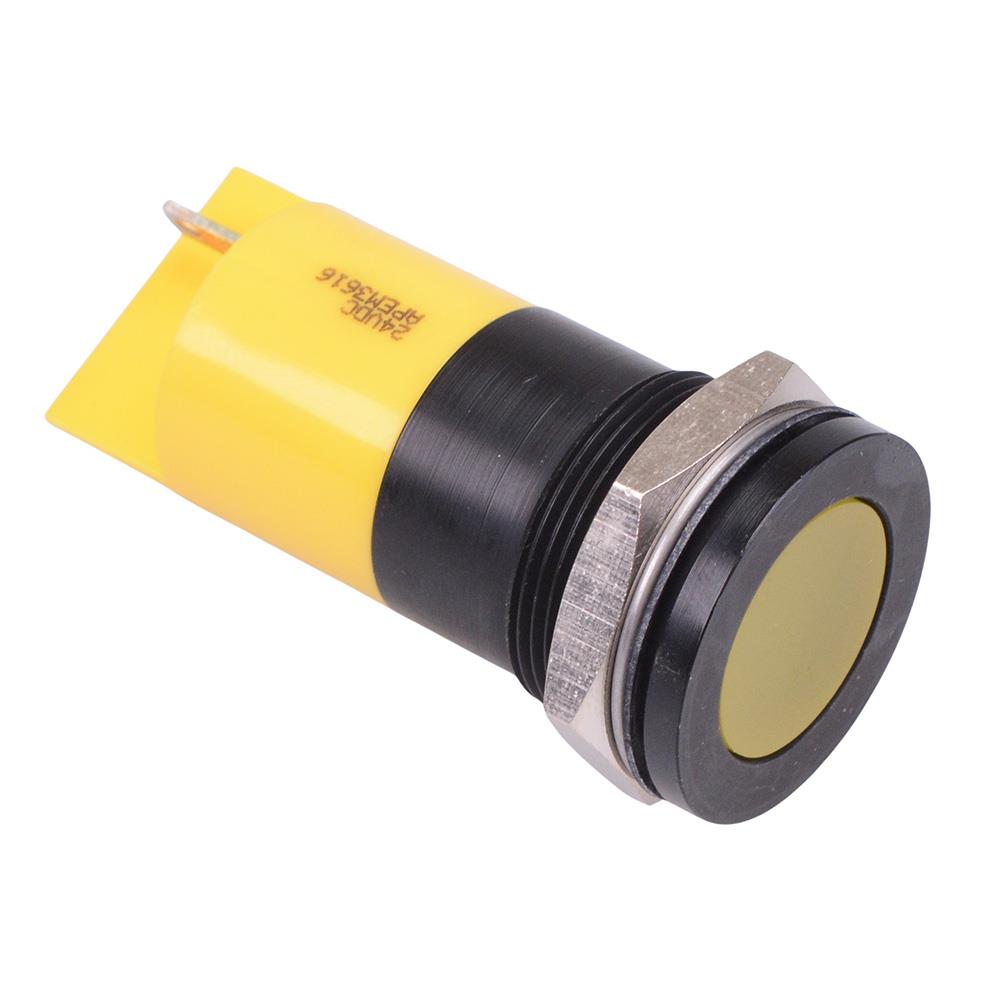

The Q22F1BXXY24E is a yellow panel mount LED indicator from the APEM Q22 series, featuring a 22mm cut-out and sealed to IP67. The indicator features a flush black plated brass bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.

* Colour: yellow * Panel cut-out: 22mm * Voltage rating: 24VDC * Current rating: 40mA * Panel thickness: 10mm max * Brightness: 59mcd * Operating voltage: 21.6 to 26.4VDC * Bezel material: black plated brass * Protection level: IP67 * Terminal type: quick connect / solder 2.8 x 0.8mm * Length: 41.5mm * Diameter: 25mm * UL, REACH and RoHS certified
