PW55

PD550-S233 2X10K PW55/01

pw55/01

PW55-01 2X2.5/2X100

PW55-8K0 80ST/330ST

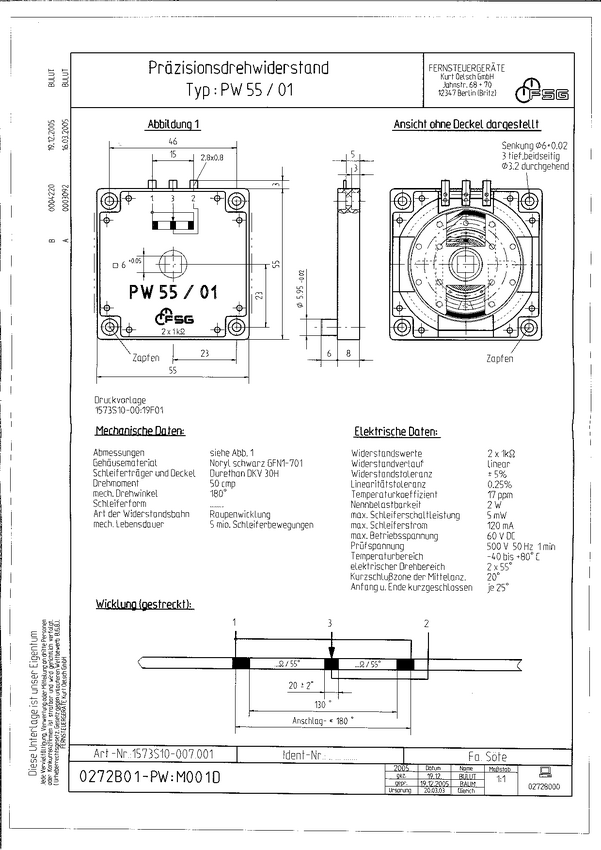

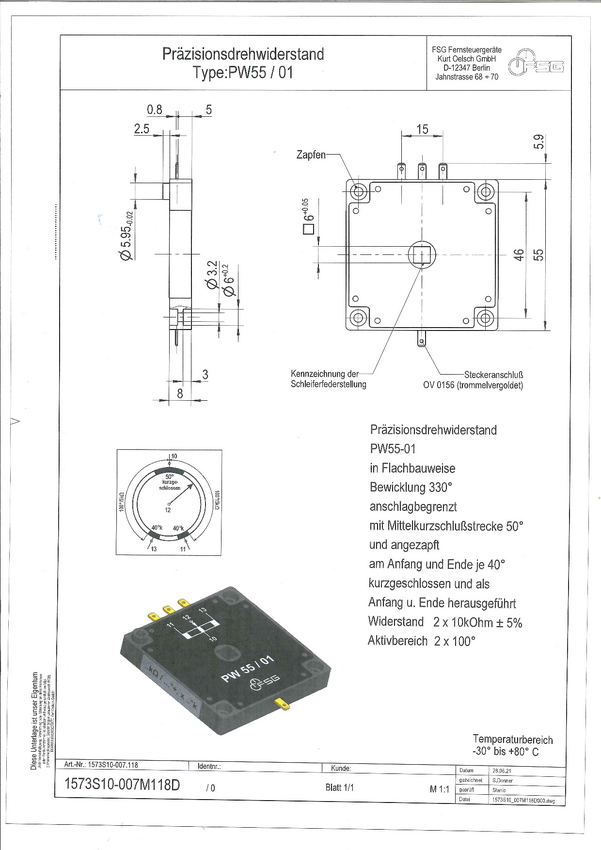

Potencjometr specjany na bazie korpusu PW55 podobny do PD550 55x55x8mm; rozstaw śrub 46x46 mm; Rotation angle 330 deg stops; active angle 80 deg Resistance 8 kohm +-5%; start and end each 135 deg; IP50 Housin Lifetime 10 mill cycles; machanical angle 330 deg; electrical a e 350 deg; Resistance tolerance +-5%; Linearity +-1%; max slide urrent 120mA; torque 0,2Ncm; temperature range -30 - + 80 deg c Uwaga: zdjęcie podobnego

pw55 1573s10-007.001

PD550-S233 2X5K PW55/01
