PMPW613 PW620 PK613 PK620

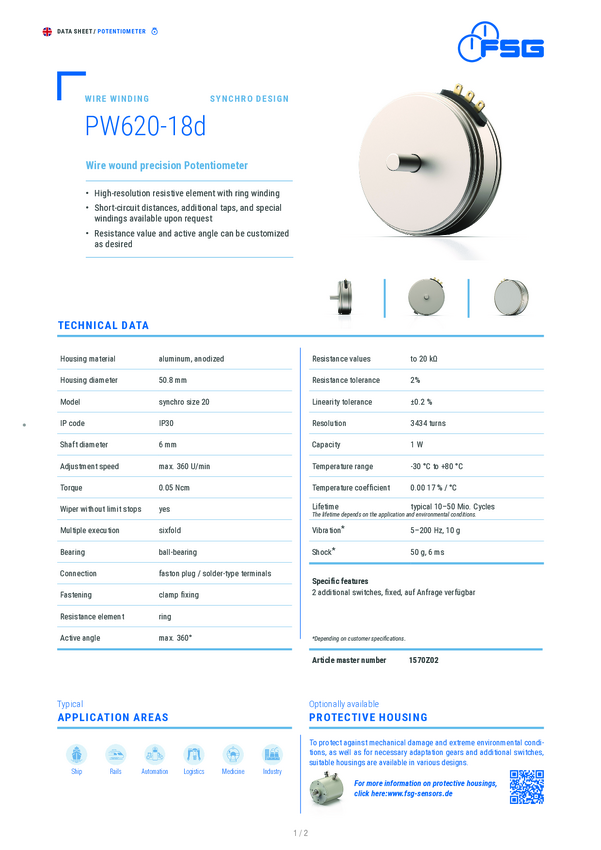

pw620-18d

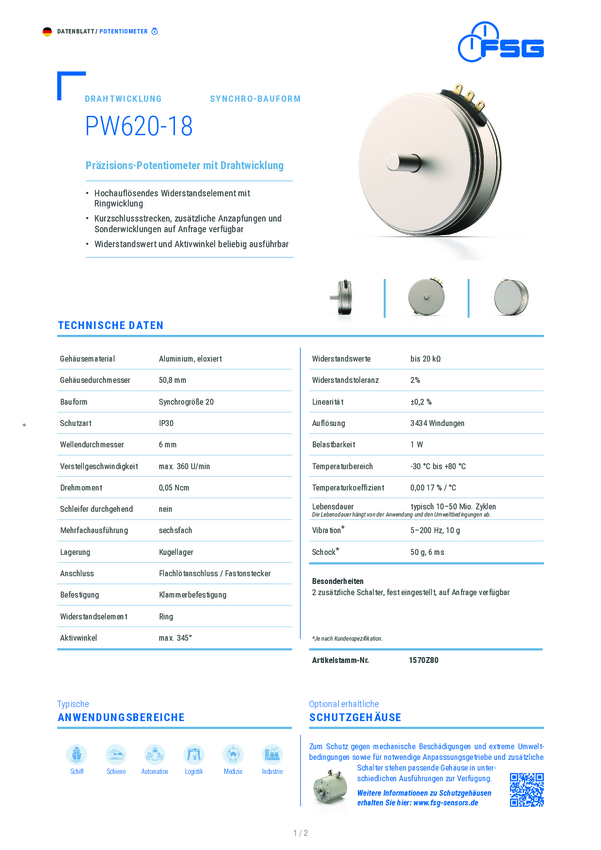

pw620-18

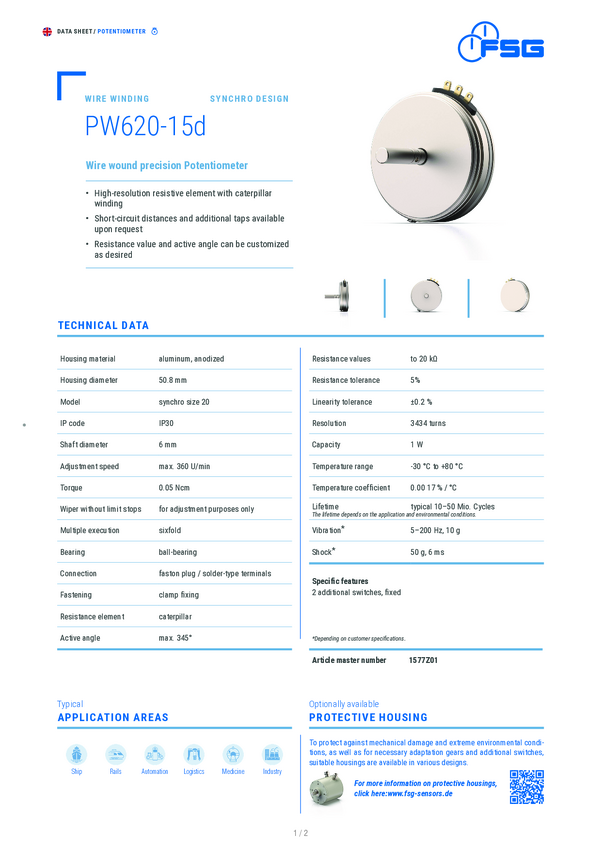

pw620-15d

PW620-15

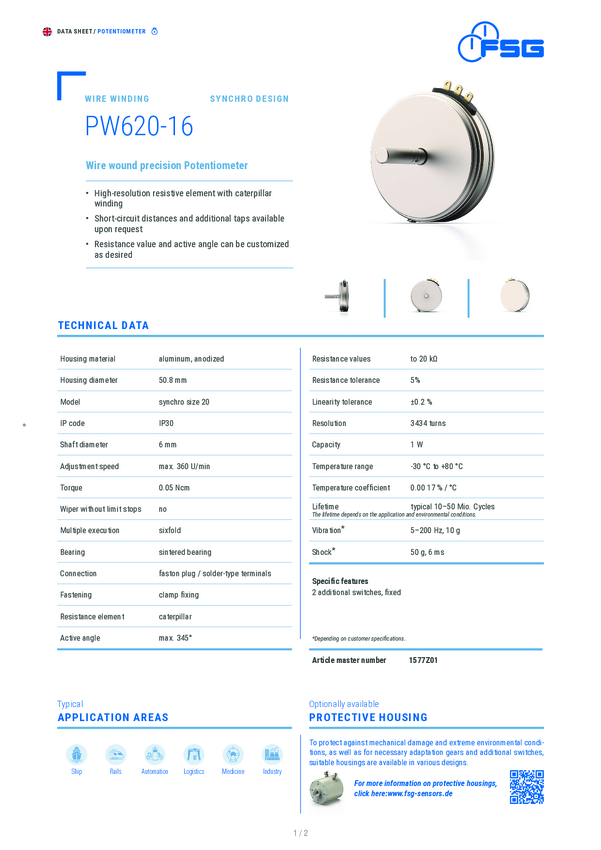

pw620-16

PW620-MU/I-02

Precision Angular Position Transmitter PK620d/mu-I02C in servo fla nge casing 20 wiper rotatable without linit stops output +20mA..4m A...+20mA; V charakteristic curve burden max 600 ohm supply 20-30V DC 2 wire system version according to 0313PK torque 3/4 10cmp and 3/4 0,1 Ncm

1572Z05-003.106

Potentiometer 345° movement x 4-20mA - PW620/MU-i01 1572Z05-003.106 (PW620/MU-i01) Precision Potentiometer - PW620/MU-i01. Casing: model 20 with limit stops Active range: 0 - 345° Output: 4 - 20 mA at max. 600 Ohms preset at 0 - 345° Supply: 20-30 VDC with galvanic isolation between supply and output terminals. Shaft # 1570z02-000:22A torque 3 10 cmp and 3 0,1 Ncm respectively Customs tariff code: 85 33 31 00 Manufacturers part number is PW620/MU-i01 - 1572Z05-003.106 (PW-620-MU-i01 - 1572Z05003106) Custom

1571Z01-009.003

Angular Position Transmitter PW620/120-18MIId 1571Z01-009.003 (PW620/120-18MIId) PW620/120-18MIId Precision Angular Position Transmitter. PW620/120-18MIId in servo casing size 20 with 2 isolated windings winding I + II each as DE-transmitter resistance I + II each approx. 2087 U on 360° that means cross resistance each approx. 521 U shaft 6 mm Ý 14 mm long. Net Weight: 0.15kg.

PW620-18d-1k

Moc 2,5W; lin 0,5-0,1%; 17ppm; 1570z02-001.106 drutowy Precision Angular Position Transmitter PW620-18d servo mount size 20 winding angle 360° wiper rotatable without limit stops reactive winding 240° resistance 1 kohm ± 1% / 120° shaft 6 mm Ý length from support 14 mm torque 3 10 cmp or 3 0,1 Ncm serwo 2" ośka 6mm, dł.ośki 12 mm; rez.1 k - podobne : PM*CP*50* i PM*FCP50A* na bazie korpusu Sakae można wykonać na zamówienie Średnica 50,8mm; gł. 17,4mm; ośka 6mm dł 12 ( 14 ) mm; elektryczny kąt pracy

PW620-18D/2S/R/KS135

3601Z02-001.006

Precision Potentiometer PW620-29/90/120MIId-G90 in cast casing with cable inlet for moist atmospheres IP code IP65 Intermediate gearbox, backlash reduced 2 separate windings at separate formers wiper continuous rotation without limit stops. Winding I/II: according to circuit 702 3 tappings with 120° offset 2 wipers with 180° offset resistance approx. 2087 U Ý of driving shaft 6mm Weight: 0,800 KG Manufacturers part number is PW620MIId-G90 (3601Z02-001.006) Customs Tariff code: 85 33 31 000

PW620-38MIID 1571ZA225700

PW620-38MIID 1571ZA2-257.001 Precision angular position transmitter PW620MII038d in servo casing size 20version according to 1571z12-257m001d 2 windings on isolted winding bodies wiper continous rotation without linit stops each winding angle each 360 deg resistance 10435 ohm+-1% /350 deg with soldered connections short version shaft on both sides 6,00 mm diameter Lf1=24 mm Lf2=10mm with screwdriver slot on both side socket 3 x M3/120 deg TD 30mm and M4/180 deg TD 32mm

1571Z80-269.001

Precision Angular Position Potentiometer PW620 1571Z80-269.001 1571Z80-269.001 Precision Angular Position Transmitter PW620/90-42MIId in servo casing size 20 with 2 isolated windings on isolated winding bodies winding each 360° wiper rotate without limit stops each with 4 at 90° shifted tappings each with 2 at 90° shifted wipers resistance each approx. 5217 ? shunt resistor each approx. 1304 ? sense of rotation right with flat solder connection short design shaft 6 mm Ý 14 mm long ship's design, that means
