500mA Low Voltage Step-Down Synchronous Switching Regulator

The LTC1504A is a self-contained, high efficiency synchronous buck switching regulator. It includes a pair of on-chip 1.3Ω power switches, enabling it to supply up to 500mA of load current. Efficiency peaks at 92%, minimizing heat and wasted power. The synchronous buck architecture allows the output to source or sink current as required to keep the output voltage in regulation. 100% duty cycle operation minimizes dropout voltage.

The LTC1504A is available in adjustable and fixed 3.3V output versions. An adjustable current limit circuit provides protection from overloads. The internal 1% reference combined with a sophisticated voltage feedback loop provides optimum output voltage accuracy and fast load transient response. The LTC1504A is specified to operate with input voltages between 4V and 10V. Contact the LTC factory for guaranteed specifications at 2.7V supply.

The LTC1504A is a pin-compatible, functional upgrade to the LTC1504.

The LTC1504A is available in a plastic SO-8 package.

Applications

* Small Portable Digital Systems

* Active Termination

* Auxiliary Output Voltage Supplies

* Minimum Part Count/Size Switchers

* 500mA Output Current at 3.3V Output

* Up to 92% Peak Efficiency

* Internal Reference Trimmed to 1%

* Output Can Source or Sink Current

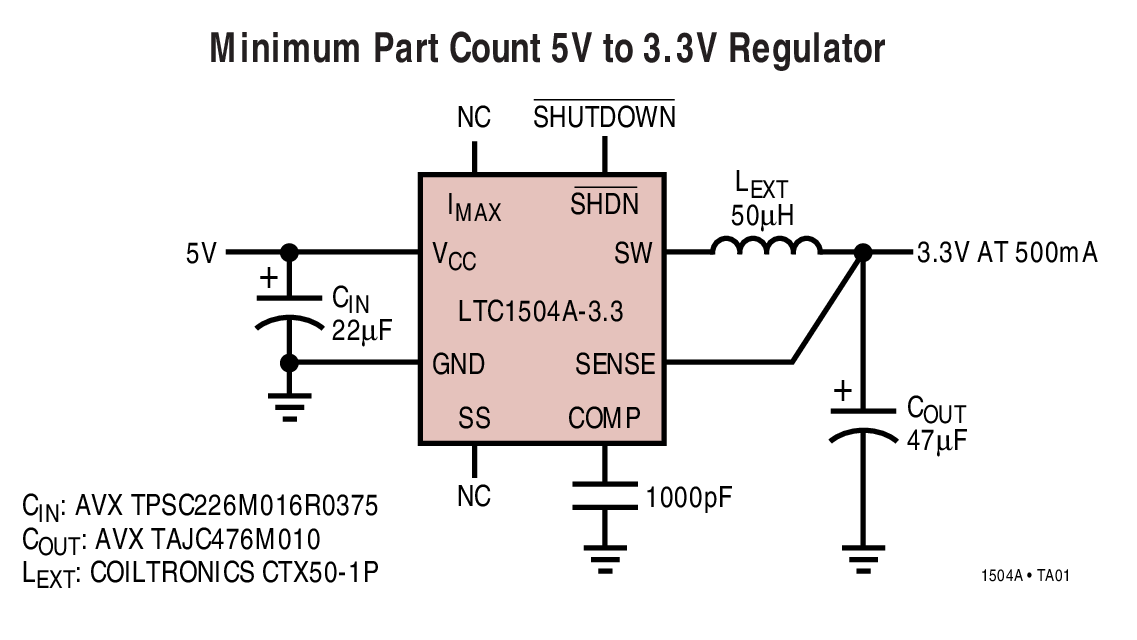

* Requires as Few as Four External Components

* Input Voltage Range: 4V to 10V

* Adjustable Current Limit

* Small SO-8 Package

* 200kHz Switching Frequency Can be Synchronized Up to 500kHz
