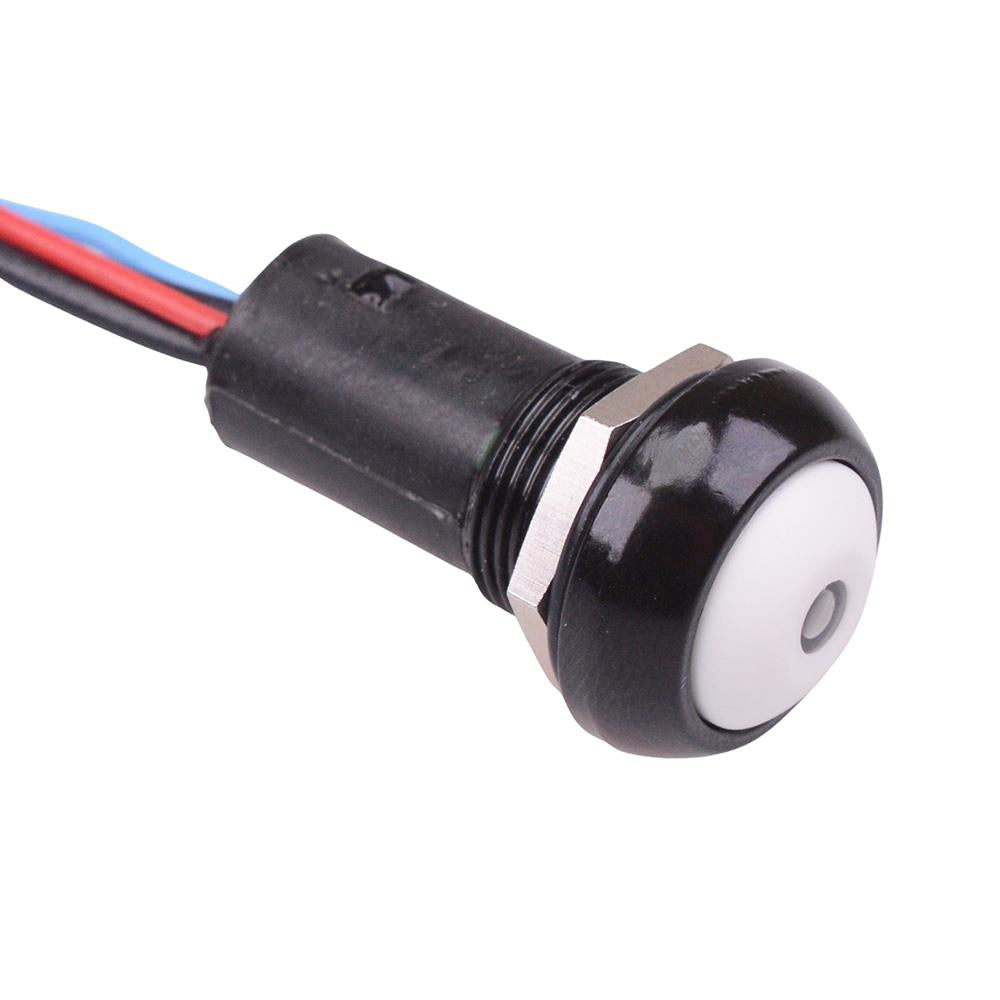

IPR3FAD7/1L0G APEM Green LED Round Momentary NO Prewired Push Button Switch SPST IP67

The IPR3FAD7/1L0G is an illuminated white button momentary round push button switch with a 12mm bushing and compact package sealed to IP67. The switch features 500mm flying leads and SPST contacts, suitable for applications in harsh environments including automotive.

* Momentary operation * White button * Green LED * LED forward voltage: 2.1V * LED forward current: 20mA * SPST-NO contacts * 12mm bushing * Sealed to IP67 * Panel cut-out: 13.6mm * 500mm flying leads * Gold plated silver contacts * Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC * Panel thickness: 1.5-4mm * Dimensions: 29.8 x 17.5mm (height x diameter)
