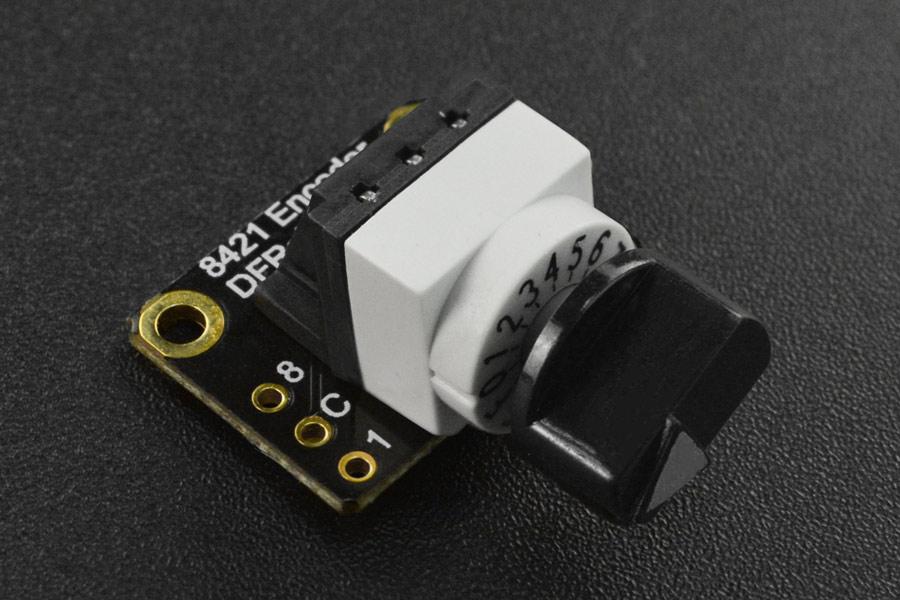

DFRobot 8421 Encoder - Horizontal

This is an 8421 absolute position encoder with 16-gear code(0-F). The mechanical position determines the uniqueness of each position of the encoder. Compared to a potentiometer, it doesn’t require memory, reference point, and constant counting. Whenever you need the position, you can just easily read it. In this case, the anti-interference of the encoder and the reliability of the data are greatly improved. And because of the absolute uniqueness of each position, the anti-interference ability, and no power-off memory function required, this product is widely used in many kinds of industrial systems for device status controlling.Specifications

* Operating Current: 150mA, 42V * 8421 Encode: 16-gear(0-F) * Service Life: 10000 steps * Operating Temperature: -40~85℃ * Dimension: 14x19mm/0.55x0.75” * Mounting Aperture: 2.0mm * Mounting Hole Pitch: 15mm Documents

* Product wiki Shipping List

* 8421 Encoder-Horizontal x1 * 2.54 Black Single Row Pin Header-3P x2
