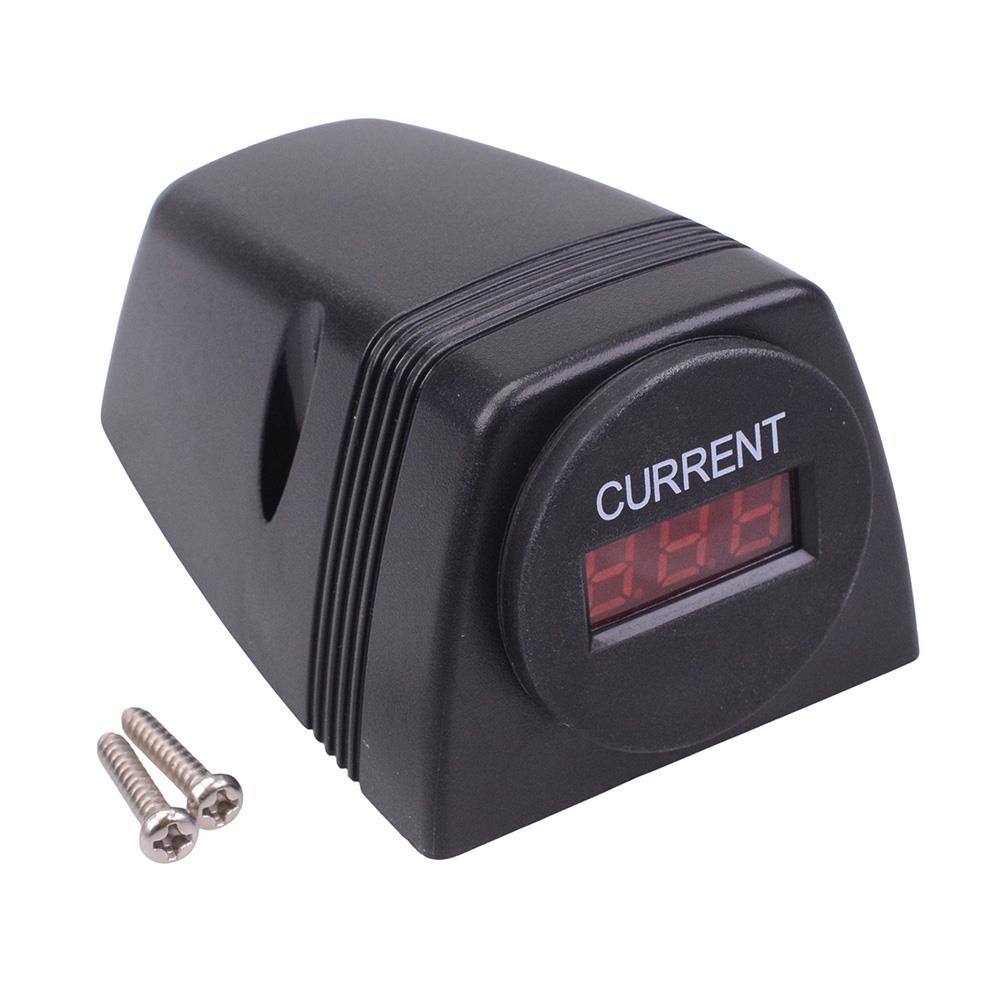

Ammeter with Panel Mount Housing 7-33VDC A25-1BHS-BB3-R

The A25-1BHS-BB3-R is a ammeter complete with mounting panel. The meter features 7-33VDC operating voltage and is capable of measuring from 0-20A current. The meter features a red LED display and is protected against reverse polarity and surge protection. The housing allows the meter to be easily mounted to a panel, suitable for 12V and 24V applications including automotive.

* 0-20A test range * Red LED display * Operating voltage: 7-33VDC * Reverse polarity protection * Surge protection * 6.3mm quick connect terminals and 14AWG tail leads * Mounting hole pitch: 38.6mm * Dimensions: 76.4 x 53.4 x 41.5mm (depth x width x height)
