HOUSING A 1708Z03

1708Z03-065.009

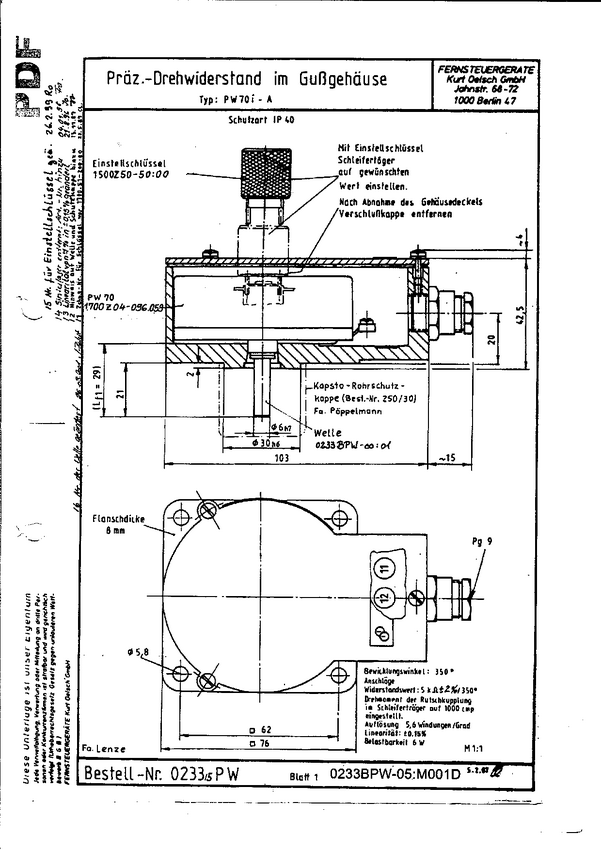

Potentiometer in Cast Iron IP40 Case - 350 Degree Movement x 10k Ohms - PW70d/A 1708Z03-065.009 PW70d/A Precision Potentiometer in cast iron case to IP40 enclosure rating. Potentiometer is 10k Ohms +-1% across 350 Degree movement (within 360 degree mechanical rotation). 125mm x 75mm x 60mm overall. Shaft is 6mm x 16mm Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd. Used for Thruster Position sensing, dancer bar/dancing roller and any high performace/high reliability applications.

1700Z04-096.059

Potencjometr z modelu PW70/A/IP40-350-5K-1708Z03-096.008 i z takiego samego tylko IP65 zamiast IP40 PW70/A/IP65 350 5K 1708z03-352.078 ( z potencjometrem 1708z04-096.059) 1700Z04-096.059 Precision Potentiometer PW70-RK winding angle 350°, stops resistance 5 kU ± 1% / 350° shaft 6 mm Ý, LF 1 = 29 according to 0233 BPW-00:01 with incorporated slipping clutch cap with bore hole and cover i. e. cover according to 1700Z04-00:2602 and cover according to 1700Z04-00:2701 Uwaga: zdjęcie podobnego

1708Z03-096.018

PW70A Precision Potentiometer in cast iron case to IP40. Potentiometer is 8.57k Ohms +-1% across the 60 Degree movement, without gears and includes a slipping clutch for mechanical protection. 125mm x 75mm x 60mm overall. Shaft is 6mm x 16mm Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd. Used on FAS Packaging Machinery and any high performace dancer bar or dancing roller applications. Other resistance values are available on request. Customs Tariff code: 85 33 31 000 Potencjometr 1700Z04-096.038 Pa

1708Z03-096.078

1708Z03-065.011

Potentiometer in Cast Iron IP40 Case - 90 degree Gear-less movement x 2571 Ohms 1708Z03-065.011 + 1700Z04-065.117 (PW70dA with PW 1700Z04-065.117) PW70dA Precision Potentiometer in cast iron case to IP40. Potentiometer is 2571 Ohms +-1% across the 90 Degree movement, with aditional 270 degree movement. 125mm x 75mm x 60mm overall. Shaft is 6mm x 16mm Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd. Manufacturer is FSG Full part number is 1708Z03-065.011 as PW70dA with PW 1700Z04-065.117

PW70A5K90 1708Z03.352.012

PW70/A/IP40 drehwinkel 60 deg 5 kohm+-1% / 60 deg AN1708z03-352.012 w środku najprawdopobniej jest potencjometr PW70 1700z04-096.010 r5 kohm +-1% / 60 deg ośka dł. 16 mm

1708Z03-325.108

Precision Angular Position Transmitter, Cast Iron IP40 Case - 240 degree movement x 5k Ohms 1708Z03-325.108 PW70d-ÖF-A with oil filling, Precision Angular Position Transmitter in cast iron case to IP65 (with PW 1700Z04-069.012) with cable inlet for moist atmospheres Potentiometer is 5k Ohms +-1% across the 240 Degree movement, Active angle 120 Degree wiper continuous rotation without limit stops Approximate overall dimensions: 125mm x 75mm x 60mm overall. Shaft is 6mm diameter x 16mm long Fixing flange has

FSG A-GEH 1708Z03-096.040

1708z03-096.040 1708z03-096.040/00 1708z03-096.040/00 PW..70 PW..620 PK..620 WD..620

PW70 5K 1708Z03-096.008

1708Z03-352.008

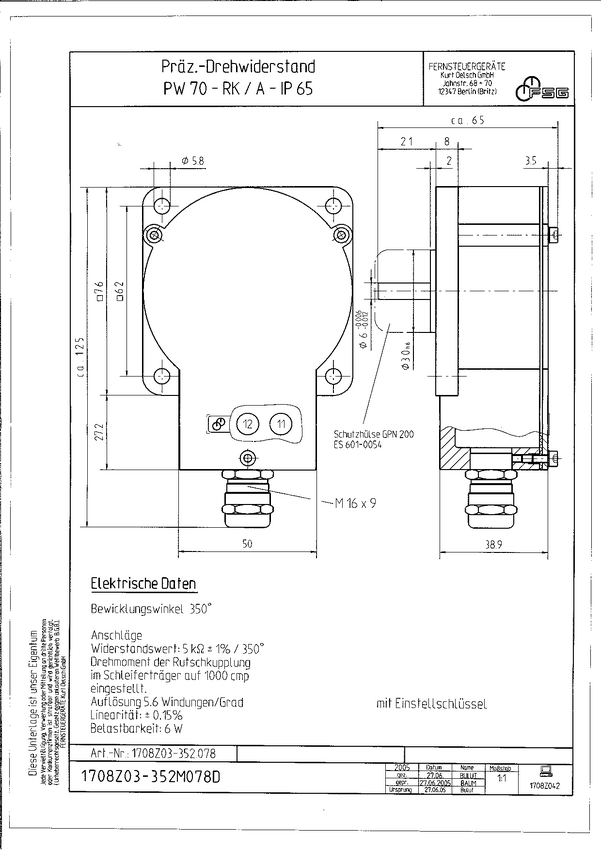

PW70/A/IP65 350 5K 1708z03-352.078

Precision Angular Position Transmitter PW70A in cast casing IP65 accord. to 1708Z03-352M008D (with PW 1700Z04-096.011) R = 5 kU +- 1%/350° stops length from support 16 mm shaft 6 mm Ý, with slipping clutch w środku potencjometr: Precision Angular position transmitter PW70 res. 5k ohm+-1% 1700z04-096.011 PW70-ST-SC-5K

1708Z03-096.079

Precision Potentiometer in Cast Iron IP40 Case - 5k Ohms 350 deg stops 1708Z03-096.079 (1708Z03-096.079 + PW 1700Z04-096.064 PW70A Precision Potentiometer in cast iron case to IP40 1708Z03-096.079 (with PW 1700Z04-096.064). Potentiometer is 5K Ohms +/-1% 350o Stops. 125mm x 76mm x 39mm overall. (excluding shaft) 16 mm long from support of A-casing with slipping clutch according to dimensional sketch1708Z03-096M079D Scope of delivery without setting key. Fixing flange has 4 x 6mm dia smooth holes on 62 x 62m
